(Recovered, supplied) DA14585-00000VV2 Small size, low power, high integration Bluetooth 5.0 SoC.

Overview:

The SmartBond™ DA14585-00000VV2 is the smallest, lowest power and most integrated Bluetooth 5.0 SoC. As iot devices continue to evolve, smarter, lower power and more fully featured products continue to emerge, so SmartBond™ devices continue to be upgraded, and the DA14585 SoC offers all the benefits of the industry-leading DA14580 while providing greater flexibility. Enables engineers to develop superior products with minimal size and power.

As a member of the SmartBond product family, the DA14585 is the smallest, lowest power and most integrated Bluetooth solution on the market today. The versatile SoC is used in applications such as remote controls, proximity tags, beacons, connected medical devices and smart home nodes, and is ideal for Bluetooth low power functions.

The DA14585 supports all technical standards of Bluetooth 5.0 and Bluetooth Mesh. Built-in 96KB SRAM, which is twice the size of the previous product; It also supports voice, including a low-cost integrated microphone interface for voice support. Wide supply voltage range (0.9-3.6V) supports more power options.

SoC Features:

- Compliant with Bluetooth 5.0

- Supports up to 8 Bluetooth low power connections

- The cold start time is less than 50ms

- 16MHz 32bit ARM Cortex-M0 with SWD interface

-  64KB OTP+96KB SRAM+128KB ROM

- Integrated BUCK/BOOST DC-DC

- Ports P0, P1, P2, and P3 have 3.3V tolerance

- Support for button batteries (3.0V typical) and alkaline batteries (1.5V typical)

- Supports 0.9V/1.8V cold start

- There are 16MHz crystal oscillator and RC oscillator, 32KHz crystal oscillator, RCX oscillator

- With flexible reset circuit

- General purpose IO: 14 (WL-CSP34), 25 (QFN40), 32 (QFN48)

- 2 UART, support hardware flow control, maximum data rate up to 1MBd

- SPI+™ interface

- IIC bus, operating frequency is 100KHz and 400KHz

- 3-axis orthogonal decoder

- 4-channel 10bit ADC

- Complete integrated 2.4GHz CMOS transceiver

- Single wire antenna: No RF matching or RX/TX switching required

-TX: 3.4mA, RX: 3.7mA

- +0dBm transmit power, -20dbm near-field mode output power, -93dbm RSSI

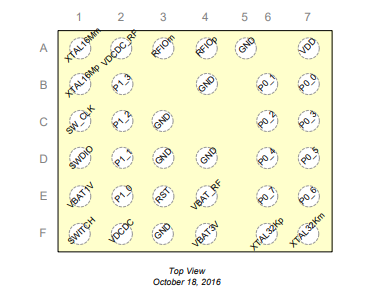

- Package: WLCSP 34(2.40mm*2.66mm*0.39mm)

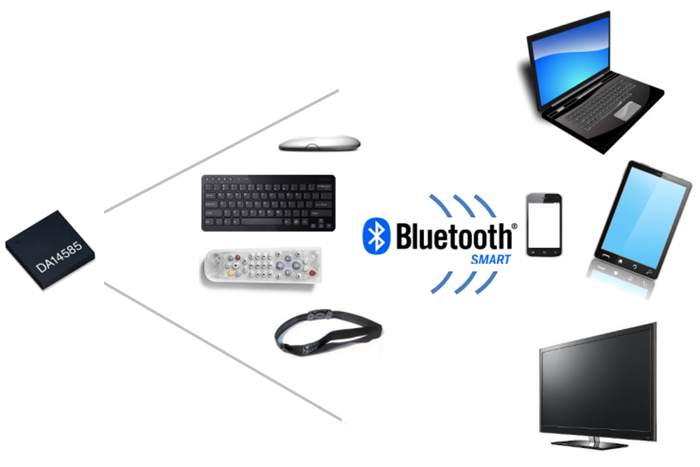

Applications:

• Voice-activated remote control

• Beacon

• (multi-sensor) wearable devices

- Fitness tracker

- Consumer Health

• Smart watch

• Human-machine interface equipment

- Keyboard.

- The mouse.

• Toys

• Consumer appliances
