Overview:

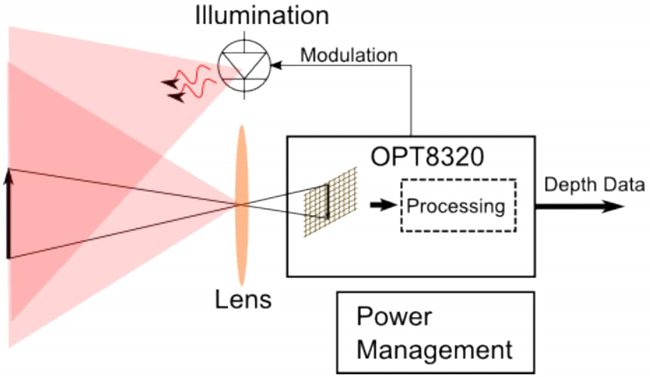

The OPT8320NBPL sensor is part of the TI 3D ToF image sensor family. The device is a high-performance, highly integrated complete system-on-chip (SoC) for array depth sensing. It includes a multi-function timing generator (TG), an optimally designed analog-to-digital converter (ADC), a depth engine, and a lighting driver. The programmability of this built-in TG is very flexible and can be optimized for a variety of depth sensing performance metrics such as power, motion stability, signal-to-noise ratio (SNR), and environmental cancellation.

The OPT8320 has a built-in depth engine that calculates depth data from digitized sensor data. In addition to phase data, the depth engine also provides auxiliary information, including amplitude, environment, marking of each pixel, and full array statistics in the form of histograms.

Applications:

Depth sensing

Location and proximity sensing

3D scanning

3D machine vision

Security and monitoring

Gesture control

Augmented and virtual reality

Features:

Imaging array

Array: 80 x 60

Sensor format: 1/6"

Pixel pitch: 30µm

The frame rate can be extended to 1000FPS depth output rate, and the internal raw rate is 4000FPS

Optical property

Response rate: 0.35A/W (850nm)

70% at 50MHz demodulated contrast

Demodulation frequency: 10MHz to 100MHz

Output interface

Digital Video Port (DVP) (8 data channels, HD and VD pins, and clock)

Synchronous Serial Interface (SSI) (1 data channel, clock, and chip selection)

Sequence generator

Sensor addressing engine

Modulation control

de-aliasing

Master and slave run synchronously

High dynamic range operation

Depth engine

Pixel sorting

de-aliasing

histogram

calibrate

Power source

3.3V I/O, analog

1.8V Analog, digital, I/O

1.8V demodulation (typical value)

Optimized optical package (COG-56)

8.03 mm x 5.32 mm x 0.745 mm

Integrated optical bandpass filter (830nm to 867nm)

Optical reference for easy alignment

Built-in lighting driver for low power applications

Operating temperature range: 0°C to 70°C
