[For Sale ST] 100V, 2A STPS2H100ZFY Automotive Schottky Diodes & Rectifiers

[For Sale ST] 100V, 2A STPS2H100ZFY Automotive Schottky Diodes & Rectifiers

Source:our siteTime:2023-06-21Views:

Shenzhen Mingjiada Electronics Co., Ltd. [Sell ST] STPS2H100ZFY Automotive 100 V, 2 A SOD123 Planar Power Schottky Rectifier, Brand New and Original, Quality Assurance, Welcome to call!!!STPS2H100ZFY Description:Single chip Schottky rectifier for auto…

Shenzhen Mingjiada Electronics Co., Ltd. [Sell ST] STPS2H100ZFY Automotive 100 V, 2 A SOD123 Planar Power Schottky Rectifier, Brand New and Original, Quality Assurance, Welcome to call!!!


STPS2H100ZFY Description:

Single chip Schottky rectifier for automotive applications such as lighting, diesel injection or engine control units.


All functions

Compliant with AEC-Q101 standard

High junction temperature capability

Low leakage current

Negligible switching losses

Specified avalanche capability

ECOPACK®2 compliant components

PPAP capable


Product properties

Product Category: Schottky Diodes and Rectifiers

Product: Schottky Rectifiers

Mounting Style: SMD/SMT

Package / Case: SOD-123-2

Configuration: Single

Technology: Si

If - Forward current: 2 A

Vrrm - Repeated reverse voltage: 100 V

Vf - Forward voltage: 860 mV

Ifsm - Forward inrush current: 50 A

Ir - Reverse current: 1 uA

Minimum operating temperature: - 40 C

Maximum operating temperature: + 175 C

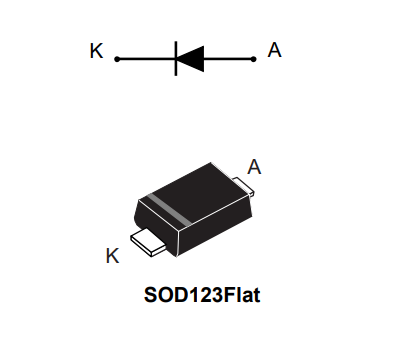

The STPS2H100ZFY devices are available in the SOD123Flat package and are particularly suitable for surface mounting for high frequency converters, freewheel and reverse polarity protection in automotive applications.


If you are interested, please contact Mr. Chen by phone at

Tel: +8613410018555

E-mail: sales@hkmjd.com

Company Home: www.hkmjd.com
