Mingjiada Electronics Limited long-term new and original supply ADI Car Audio AD2428WCCSZ-RL AD2428 Integrated I2S/Time Division Multiplexing A2B Master/Slave 4xPDM XCVR

AD2428WCCSZ-RL Device Description:

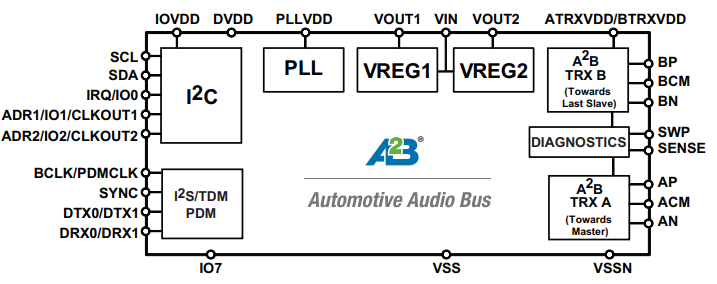

The AD2428 Automotive Audio Bus (A2B®) transceiver has very powerful features to tailor system-level performance to the most stringent electromagnetic compatibility (EMC) requirements. the AD2428 A2B transceiver offers configurable transmit power levels, enabling developers to match system performance to specific OEM EMC requirements. The transceiver also supports extended microphone connectivity use cases and distributes audio and control data, as well as clock and power, over a single unshielded twisted pair cable, significantly reducing cabling complexity. These features significantly reduce system cost and are ideal for use in emerging multi-microphone applications such as road noise cancellation, in-vehicle communications and autonomous driving.

The AD2428 A2B transceivers are available in a 32-pin LFCSP (5mm x 5mm) package and are fully pin compatible, simplifying upgrades and reducing time to market. These devices are also fully compliant with all relevant automotive EMC, EMI and ESD requirements, fully AEC-Q100 compliant and can operate over the extended automotive temperature range of -40°C to +105°C.

A2B transceiver features

Configurable for A2B bus host or slave operation

I2C interface

8-bit to 32-bit multi-channel I2S/TDM interface

Programmable I2S/TDM data rates

Up to 32 upstream and 32 downstream channels

PDM interface

Programmable PDM clock rate

Up to 4 high dynamic range microphone inputs

Simultaneous reception of I2S data from up to 4 PDM microphones

Unique ID register for each transceiver

Cross or straight through wiring

Programmable settings available to optimise EMC performance

Device specifications

Product Type: Audio Transmitter, Receiver, Transceiver

Family: AD2428W

Type: Automotive Audio Bus

Number of Channels: 32 Channels

Interface Type: I2C

Operating supply voltage: 9 V to 37 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 105 C

Mounting style: SMD/SMT

Package / Case: LFCSP-32

Number of exciters: 2 Driver

Number of receivers: 2 Receiver

Number of factory packages: 490

Supply voltage - max: 37 V

Supply voltage - min: 9 V

About the Automotive Audio Bus (A2B)

Automotive Audio Bus (A2B) is an innovative application-adapted technology that reduces cable harness weight by up to 75% while providing high-fidelity digital audio. bus, capable of transmitting I2S audio and I2C control data as well as clock and power over long distances (up to 15m between nodes and up to 40m throughout the daisy chain) over a single 2-wire unshielded twisted pair cable.
