3A Buck converter LMR23630APQDRRTQ1 36V input, automotive switching regulator

3A Buck converter LMR23630APQDRRTQ1 36V input, automotive switching regulator

Source:本站Time:2023-06-07Views:

LMR23630APQDRRTQ1 Description:The LMR23630/LMR23630-Q1 SIMPLE SWITCHER step-down converter is an easy-to-use 36V, 3A synchronous step-down regulator. With a wide input voltage range of 4.5V to 36V, the device is suitable for regulating the power condi…

LMR23630APQDRRTQ1 Description:

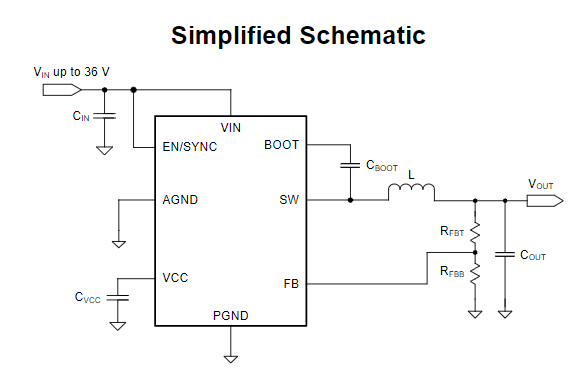

The LMR23630/LMR23630-Q1 SIMPLE SWITCHER® step-down converter is an easy-to-use 36V, 3A synchronous step-down regulator. With a wide input voltage range of 4.5V to 36V, the device is suitable for regulating the power conditioning of unregulated power supplies in a wide range of applications from industrial to automotive.


The peak current mode control is adopted to realize simple control of loop compensation and cycle current limitation. The 75µA static current makes it ideal for use in battery-powered systems. The ultra-low 2µA turn-off current further extends battery life. Internal loop compensation frees the user from the tedious work of loop compensation design. The number of external components is also kept to a minimum. The LMR23630-Q1 device complies with the AEC-Q100 standard for automotive applications.


LMR23630APQDRRTQ1 Technical parameters:

Function: Depressurize

Output configuration: positive

Topology: depressurize

Output type: Adjustable

Output number: 1

Voltage - input (min) : 4V

Voltage - input (Max) : 36V

Voltage - output (min/fixed) : 1V

Voltage - output (Max) : 28V

Current - Output: 3A

Frequency - Switch: 400kHz

Synchronous rectifier: Yes

Operating temperature: -40°C ~ 125°C (TJ)

Mounting type: Surface mount, wets flanks

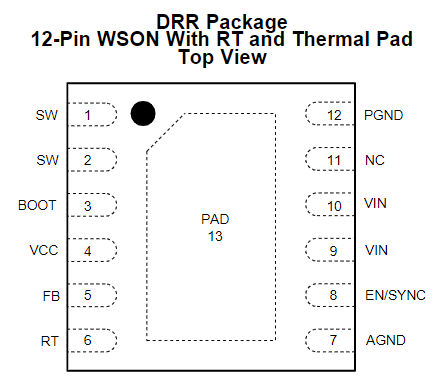

Package/housing: 12-WFDFN bare pad

Supplier Device package: 12-SON (3x3)

Basic product number: LMR23630


Scope of application:

Car battery regulation

Industrial power supply

Telecommunications and data communication systems

Universal wide input voltage regulator
