MSP430F2274IDAR (TI) 16-bit ultra-low power microcontroller MCU

MSP430F2274IDAR (TI) 16-bit ultra-low power microcontroller MCU

Source:本站Time:2023-05-24Views:

Device introduction:The MSP430F2274IDAR ultra-low power microcontroller (MCU) includes a variety of devices with different peripherals for a variety of applications. The MSP430 uses a high-performance 16-bit RISC CPU, 16-bit registers, and constant ge…

Device introduction:

The MSP430F2274IDAR ultra-low power microcontroller (MCU) includes a variety of devices with different peripherals for a variety of applications. The MSP430 uses a high-performance 16-bit RISC CPU, 16-bit registers, and constant generator to achieve excellent code efficiency. The digitally controlled oscillator can be woken up from low-power mode and put into active mode within 6µs.

Basic features:

• Low supply voltage range: 1.8V to 3.6V

• Two configurable operational amplifiers

• Ultra-low power consumption

• Super fast wake up in standby mode

• The Bootstrap Loader is smaller than 1µs

• On-chip simulation module

• 16-bit RISC architecture, 62.5-ns instruction cycle time

• Configure the basic clock module

MSP430F2274IDAR device Specifications:

Core processor: MSP430 CPU16

Kernel size: 16 bits

Speed: 16MHz

Connection capability: I²C, IrDA, LINbus, SCI, SPI, UART/USART

Peripherals: undervoltage detection/reset, POR, PWM, WDT

Number of I/ OS: 32

Program storage capacity: 32KB (32K x 8 + 256B)

Program memory type: Flash

EEPROM capacity: -

RAM size: 1K x 8

Voltage-supply (Vcc/Vdd) : 1.8V to 3.6V

Data converter: A/D 12x10b

Oscillator type: Internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: surface mount type

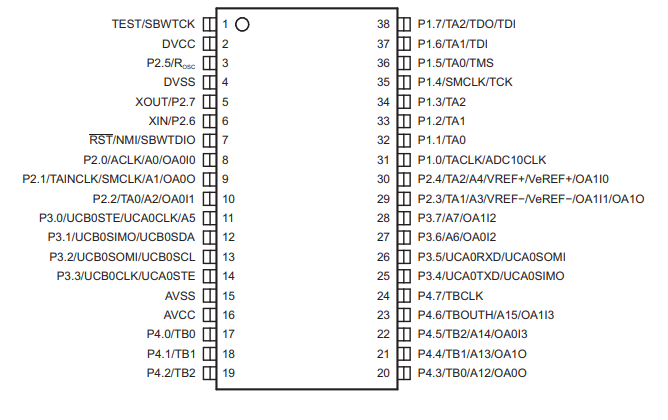

Package/case: 38-TSSOP (0.240", 6.10mm width)

Supplier component package: 38-TSSOP

Basic product number: MSP430F2274
