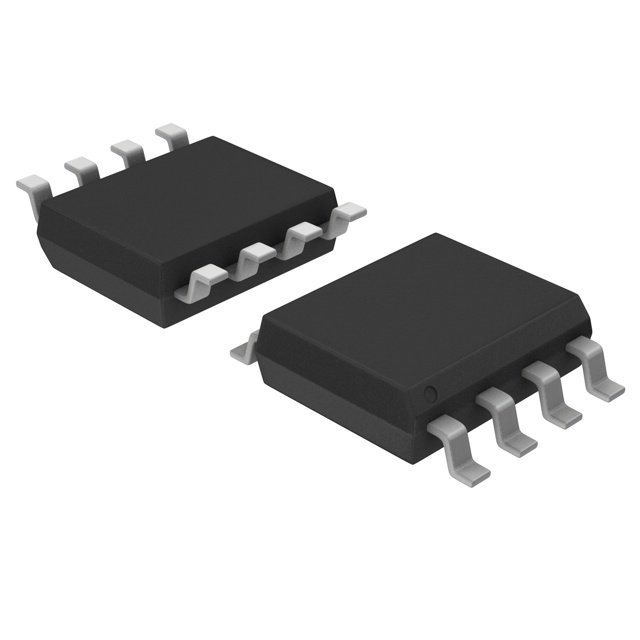

S25FS064SAGMFM013 Quad SPI flash memory is a high-performance and low-power storage solution and is widely used in various embedded systems, such as consumer electronic products like smart phones, tablet computers and digital cameras.

Features Of S25FS064SAGMFM013

• Serial peripheral interface (SPI) with multi-I/O

- SPI clock polarity and phase modes 0 and 3

- Double data rate (DDR) option

- Extended addressing: 24- or 32-bit address options

- Serial command subset and footprint compatible with S25FL1-K, S25FL-P and S25FL-S SPI families

- Multi I/O command subset and footprint compatible with S25FL1-K S25FL-P and S25FL-S SPI families

• Read

- Commands: Normal, Fast, Dual Output, Dual I/O, Quad Output, Quad I/O, DDR Quad I/O

- Modes: Burst Wrap, Continuous (XIP), QPI (QPI)

- Serial flash discoverable parameters (SFDP) and common flash interface (CFI), for configuration information.

• Program

- 256- or 512-bytes page programming buffer

- Program suspend and resume

- Automatic ECC -internal hardware error correction code (ECC) generation with single bit error correction

• Erase

- Hybrid sector option

• Physical set of eight 4 KB sectors and one 32 KB sector at the top or bottom of address space with all remaining sectors of 64 KB

- Uniform sector option

• Uniform 64 KB or 256 KB blocks for software compatibility with higher density and future devices

- Erase suspend and resume

- Erase status evaluation

• Cycling endurance

- 100,000 program-erase cycles, minimum

• Data retention

- 20 year data retention, minimum

• Security features

- One time program (OTP) array of 1024 bytes

- Block protection:

• Status register bits to control protection against program or erase of a contiguous range of sectors.

• Hardware and software control options

- Advanced sector protection (ASP)

• Individual sector protection controlled by boot code or password

• Option for password control of read access

• Technology

- 65-nm MIRRORBIT™ technology with ECLIPSE architecture

• Single supply voltage with CMOS I/O

- 1.7 V to 2.0 V
