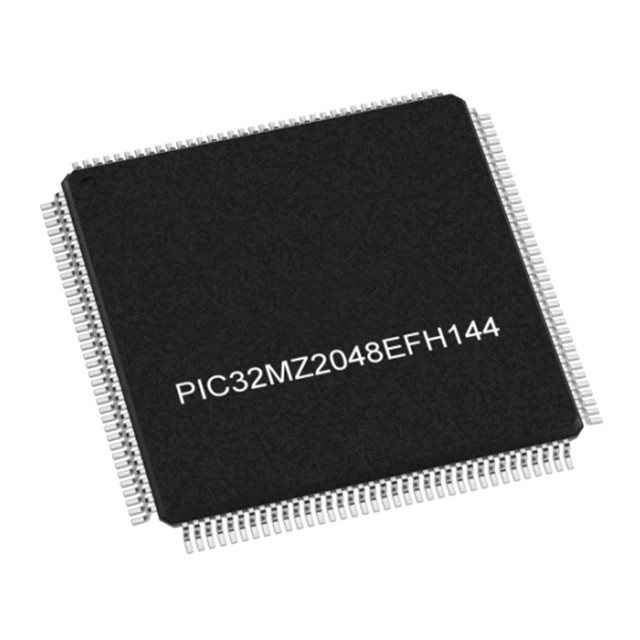

The PIC32MZ2048EFH144T-250I/PH microcontroller is a high-performance 32-bit microcontroller (MCU) launched by Microchip. It adopts the MIPS32® M-Class core with a main frequency of up to 252MHz, and is equipped with a floating-point operation unit (FPU) and an encryption accelerator. Suitable for the development of complex embedded systems. The following are its core parameters:

Core processor: MIPS32® M-Class

Kernel specification: 32-bit

Speed: 252MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG

Peripherals: power-off detection/reset, DMA, I2S, POR, PWM, WDT

I/O count: 120

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 512K x 8

Voltage - Power supply (Vcc/Vdd) : 2.1V to 3.6V

Data converter: A/D 48x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 144-TQFP (16x16)

In addition, the PIC32MZ2048EFH144T-250I/PH MCU features a leading code density in its class, which is 30% higher than that of its competitors. It also has a 28Msps analog-to-digital converter, providing one of the best throughput rates for 32-bit MCUS.

Application field

The PIC32MZ2048EFH144T-250I/PH is suitable for complex systems that require high-precision mathematical operations and security encryption, such as the Internet of Things and automatic control, for instance, in the fields of smart home and industrial control.
