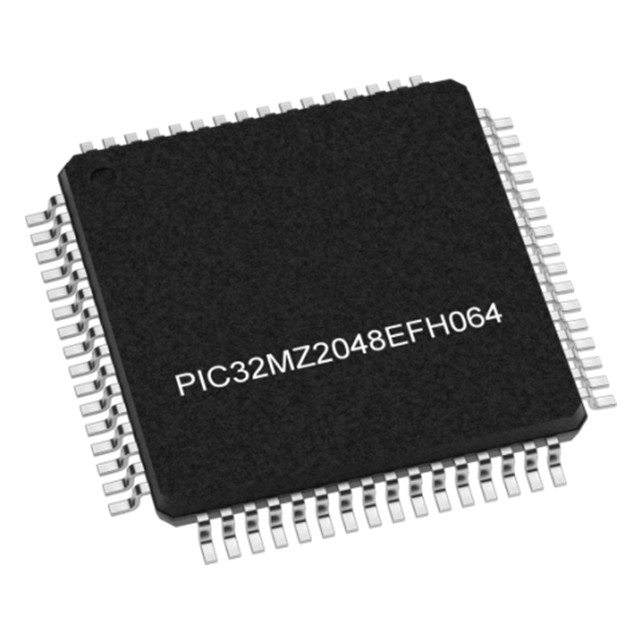

The PIC32MZ2048EFH064T-250I/PT 32-bit MCU offers performance at an operating frequency of up to 252 MHz, featuring up to 2 MB of flash memory and 512 KB of SRAM. It is suitable for connectivity applications in the industrial, automotive, Internet of Things, graphics (HMI), and motor control segments.

Main specifications

Core processor: MIPS32® M-Class

Kernel specification: 32-bit

Speed: 250MHz

Connection capabilities: CANbus, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG

Peripherals: power-off detection/reset, DMA, I2S, POR, PWM, WDT

I/O count: 46

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 512K x 8

Voltage - Power supply (Vcc/Vdd) : 2.1V to 3.6V

Data converter: A/D 24x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device package: 64-TQFP (10x10)

In addition, the PIC32MZ2048EFH064T-250I/PT MCU features a leading code density in its class, which is 30% higher than that of its competitors. It also has a 28Msps analog-to-digital converter, providing one of the best throughput rates for 32-bit MCUS. A full-featured hardware encryption engine with a random number generator can achieve high-throughput data encryption/decryption and authentication (such as AES, 3DES, SHA, MD5 and HMAC), as well as the first SQI interface on a Microchip MCU and the maximum number of serial channels on PIC32. All these make the integration of this series higher.
