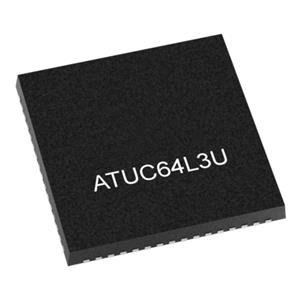

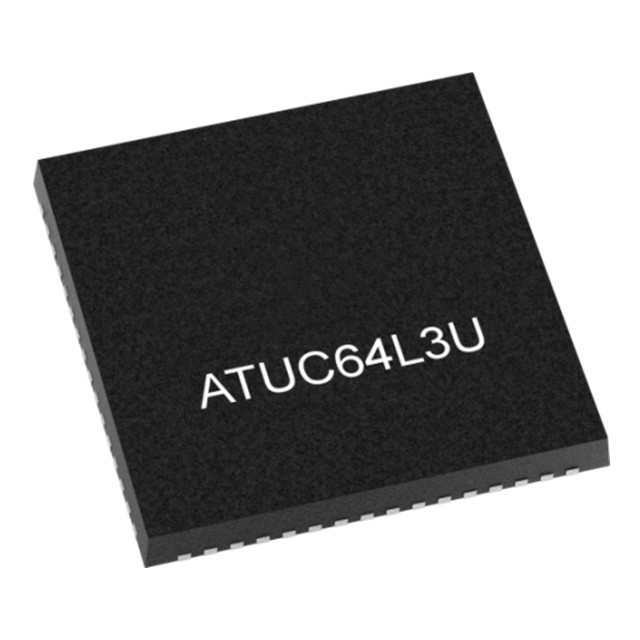

The ATUC64L3U-Z3UR is a microcontroller of the AVR32 UC3 L series produced by Microchip. Its core processor is a 32-bit AVR architecture, with a main frequency up to 50MHz. This chip supports communication interfaces such as I²C, SPI, UART/USART, and USB, and is equipped with peripheral functions like PWM, WDT, and DMA.

Main specifications

Core processor: AVR

Kernel specification: 32-bit

Speed: 50MHz

Connection capabilities: I2C, SPI, UART/USART, USB

Peripherals: Undervoltage detection/reset, DMA, POR, PWM, WDT

I/O count: 51

Program storage capacity: 64KB (64K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 16K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.62V to 3.6V

Data converter: A/D 8x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device package: 64-QFN (9x9)

Typical applications

The ATUC64L3U-Z3UR microcontroller is highly suitable for battery-powered devices, portable consumer applications, on-board controllers, joysticks, remote control, and human-machine interface devices.
