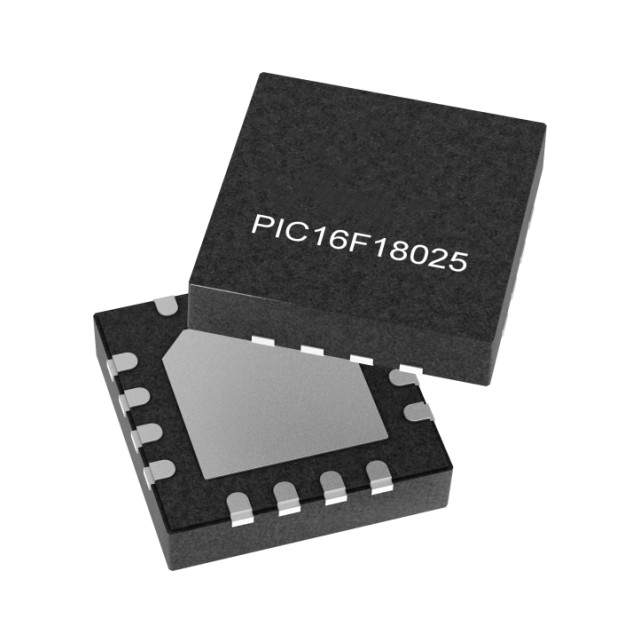

The PIC16F18025T-I/ML MCU features both digital and analog peripherals and is suitable for cost-sensitive sensor and real-time control applications. This product operates at a frequency as high as 32MHz and features a 10-bit ADCC, automatic CVD technology, an 8-bit DAC module, as well as more waveform control and communication peripherals.

Main specifications

Core: RISC

Program memory size: 14 kB

Data RAM size: 1 kB

Packaging/Cabinet: QFN-16

Maximum clock frequency: 32 MHz

ADC resolution: 10 bits

Number of input/output terminals: 12 I/O

Power supply voltage - minimum: 1.8V

Power supply voltage - maximum: 5.5V

Installation style: SMD/SMT

Data bus width: 8 bits

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Packaging: Reel

DAC resolution: 8-bit

Data Ram type: SRAM

Data ROM size: 128 B

Data Rom type: EEPROM

Interface types: I2C, SPI, USART

Number of ADC channels: 15 channels

Number of timers/counters: 6 timers

Processor series: PIC16F

Product type: 8-bit Microcontrollers - MCU

Program memory type: Flash

Typical applications

The PIC16F18025T-I/ML single-chip microcomputer is suitable for scenarios such as smart home appliances and industrial control that require high-precision analog conversion, multiple communication interfaces and low power consumption. For instance, this MCU can support capacitive touch sensing (via ADCC and CVD technologies), making it suitable for use as an IoT node or sensor node. ‌
