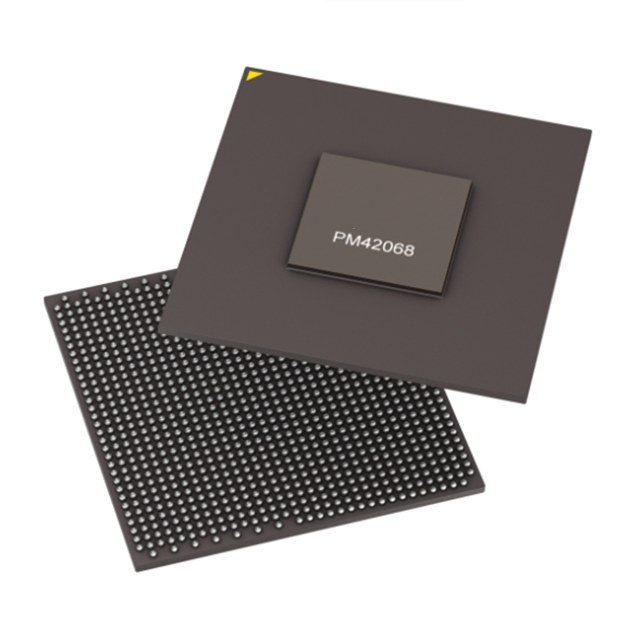

The PM42068B1-FEI is a programmable, highly reliable switch that supports shared pooling of high-performance PCIe connections to Gpus, NVMe, SSDS, and other endpoints, and multi-host sharing of single root Input/Output Virtualization (SR-IOV) endpoints.

This switch belongs to the Switchtec Gen 4 PAX series and supports 68 channels, 36 ports and hot-swappable controllers for each port. The PM42068B1-FEI switch features advanced error control, comprehensive diagnostic and debugging capabilities, a wide range of I/O interfaces, and an integrated MIPS processor.

Performance

It is connected to high-performance PCIe architectures with Gpus, NVMe SSDS, and other endpoint pools, overcoming the limitations of rack-level multi-host systems based on PCIe tree topologies

High-reliability PCIe, featuring powerful error control, hot-swappable and accidental swappable controllers for each port, end-to-end data integrity protection, and high-quality, low-power SerDes

SR-IOV and multi-host sharing of multi-functional endpoints

Supporting up to 36 ports and flexible ×1, ×2, ×4, ×8 and ×16 port forks, it can significantly save power consumption, cost and circuit board space, with no restrictions on configuring ports as upstream or downstream

Baifu Software Development Kit (SDK

Comprehensive diagnosis and debugging

The PCIe structure is shared with multiple host SR-IOVs

It is connected to high-performance PCIe architectures with Gpus, NVMe SSDS, and other endpoint pools, overcoming the limitations of rack-level multi-host systems based on PCIe tree topologies

SR-IOV and multi-host sharing of multi-functional endpoints

Virtualization of the entire PCIe domain and endpoints with physical and virtual capabilities (such as SR-IOV NVMe SSD)

High-performance non-blocking switch

A switching capacity of up to 174 GBps

68-channel variant

The ports are divided into ×1*/×2/×4/×8/×16 channels

Error containment

Advanced Error Reporting (AER) on all ports

The downstream ports on all downstream ports include (DPC)

Poisoning TLP blockade

Complete timeout composition (CTS) to prevent the upstream host from entering an error state due to incomplete unpublished transactions

Hot-swappable controller and accidental swappable controller for each port

GPIO can be configured for different cable/connector standards

PCIe interface

Passive cables, managed cables and optical cables

Connectors such as SF-8644, SF-8643, SF-8639, and OCuLink

Diagnosis and debugging

Real-time eye capture

External loop

Errors, statistical information and performance counters

High-speed I/O

PCIe 4th generation 16 GT/ s

Supports OCuLink cabling, CEM ×16 slots and other interfaces

ChipLink diagnostic tool

A wide range of debugging, diagnostic, configuration and analysis tools with an intuitive GUI

Access configuration data, management functions and signal integrity analysis tools (such as real-time eye map capture)

Application scenarios

The applications of the PM42068B1-FEI switch include scalable multi-host systems, JBOFs supporting SR-IOV, composable GP-GPU architectures, decomposable systems, and rack-level architectures.
