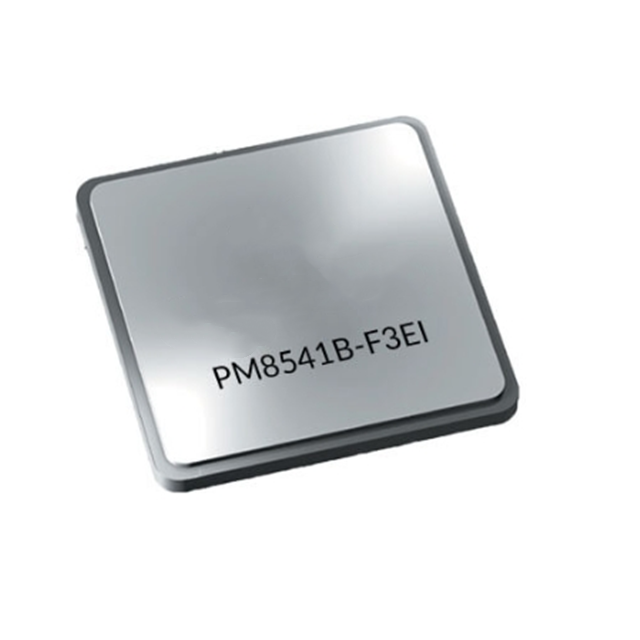

PM8541B-F3EI is a PCIe Gen 3 programmable switch belonging to the Switchtec PSX series. It supports 24 channels, 12 ports, 6 virtual switch partitions, 12 non-transparent Bridges (ntb), and hot-swappable controllers for each port.

In addition, the PM8541B-F3EI switch also features advanced error suppression, comprehensive diagnostic and debugging capabilities, a wide range of I/O interfaces, and an integrated MIPS processor. The PSX switch adopts a system-on-chip architecture and can provide differentiated solutions for customers through firmware customization and enhanced functions.

Characteristics

24 channels, 12 ports, 12 NTB and 6 virtual switch partitions

Flexible port forking has no restrictions on configuring ports as upstream or downstream

Integrated chassis management processors and I/O interfaces, SDKS and turnkey cabinet management solutions

Error control for accidental plugging and unplugging to prevent system crashes

Advanced diagnostic and debugging functions for identifying, diagnosing and fixing problems

The SDK provides customer-differentiated solutions in areas such as error containment and accidental insertion

Error containment

Advanced Error Reporting (AER) on all ports

The downstream ports on all downstream ports include (DPC)

Complete timeout composition (CTS) to prevent the upstream host from entering an error state due to incomplete unpublished transactions

Upstream Error Containment (UEC), a programmable function, can prevent errors from spreading upstream

Hot-swappable controllers for each port

GPIO can be configured for different cable/connector standards

PCIe interface

Passive cables, managed cables and optical cables

Sf-8644, SF-8643, SF-8639, OCuLink and other connectors

Diagnosis and debugging

Transaction layer packet (TLP) generator, used for testing and debugging links as well as error handling

Built-in PCIe analyzer with flexible triggering function

Real-time eye capture

An arbitrary to arbitrary port image for debugging purposes

External loop

Error, statistical information, performance and TLP delay counters

Peripheral I/O interface

Up to 8 dual-wire interfaces (TWI) supporting SMBus

Up to 2 SGPIO ports that comply with the SF-8485 standard

Up to 84 parallel GPIO pins

A 16-bit local bus interface with ECC protection

Up to 4 UArts

JTAG and EJTAG interfaces

High-speed I/O

PCIe 3rd generation 8 GT/ s

Support PCIE-compliant link training and manual PHY configuration

Chiplink diagnostic tool

A wide range of debugging, diagnostic, configuration and analysis tools with an intuitive GUI

Access configuration data, management functions and signal integrity analysis tools (such as real-time eye map capture)

Connect to the device via in-band PCIe or sideband signals (UART, TWI and EJTAG)

Typical applications

Data center ‌ : Supports flexible expansion of devices such as NVMe SSDS and Gpus to enhance I/O performance. ‌

Flash memory system ‌ : In conjunction with the Flashtec NVMe controller, it achieves millions of IOPS and 20TB flash memory capacity, suitable for high-performance storage requirements. ‌
