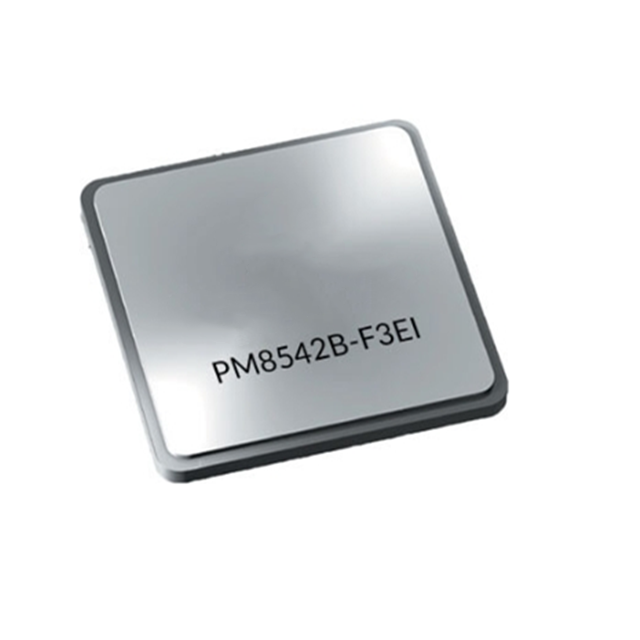

The PM8542B-F3EI is a Switchtec PSX PCIe Gen 3 programmable switch that supports 32 channels, 16 ports, 8 virtual switch partitions, 16 non-transparent Bridges (NTBS), and a hotplug controller for each port. The PM8542B-F3EI also features advanced error suppression, comprehensive diagnostic and debugging capabilities, a wide range of I/O interfaces, and an integrated MIPS processor. The PM8542B-F3EI switch adopts a system-on-chip architecture and can provide differentiated solutions for customers through firmware customization and enhanced functions.

Performance characteristics

• High-reliability PCIe: Powerful error containment, hot-swapping and accidental plugging controllers for each port, end-to-end data integrity protection, ECC protection on RAM, high-quality, low-power SERDES

• PSX Software Development Kit (SDK) : Delivering customer-differentiated solutions in areas such as error containment and accidental plugging

Integrated cabinet management processors and I/O interfaces, SDKS and turnkey cabinet management solutions

• Comprehensive diagnosis and debugging: PCIe generator and analyzer, performance and error counter for each port, multiple loopback modes and real-time eye diagram capture

Supports the following functions, significantly saving power consumption, cost and circuit board space: up to 48 ports, 48 NTB and 24 virtual switch partitions

• Flexible x2, x4, x8 and x16 port forks, with no restrictions on configuring ports as uplink or downlink or mapping ports to NTB

Typical applications

Data center ‌ : Supports flexible expansion of devices such as NVMe SSDS and Gpus to enhance I/O performance. ‌

Flash memory system ‌ : In conjunction with the Flashtec NVMe controller, it achieves millions of IOPS and 20TB flash memory capacity, suitable for high-performance storage requirements. ‌
