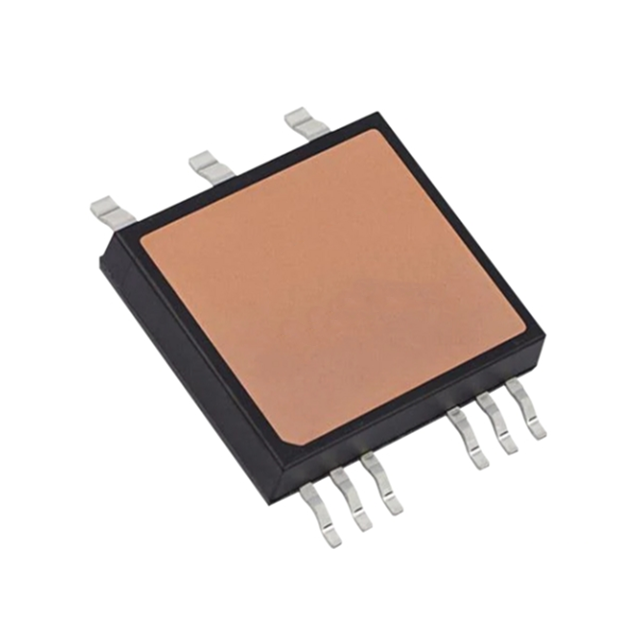

The STTH120RQ06-M2Y is a high-performance 600V ultra-fast bridge rectifier for automobiles, typically used for full-wave rectification in the output stage of DC-DC converters in automotive applications. Due to the high heat dissipation capacity of the ACEPACK SMIT package and the insulation properties of the embedded ceramic, the STTH120RQ06-M2Y will enhance the power density of the application through extremely high heat dissipation performance (top cooling). These devices are particularly suitable for integration into charger applications in vehicles or charging stations; STTH120RQ06-M2Y will enhance the performance of the target application.

Key features

Diode type: Single-phase

Technology: Standard

Voltage - peak reverse (maximum value) : 600 V

Current - average rectification (Io) : 60 A

Voltage - forward (Vf) at different If: 2.95 V @ 60 A

Current - reverse leakage at different VRS: 80 µA @ 600 V

Operating temperature: -40°C to 175°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q101

Installation type: Surface mount type

Packaging/Housing: 9-ACEPACK SMIT

Typical applications

Output rectification

On-board charger

Charging station
