The R9A02G0204GNK device is a RISC-V motor control ASSP EASY MCU launched by Renesas, specifically designed for motor control applications. The purpose of the design of its hardware specifications is to effectively handle brushless DC motors in single-shunt or three-shunt configurations in sensorless mode or with external sensor input.

With 32MHz performance, 48/16KB flash /RAM memory, and advanced simulation capabilities, the R9A02G0204GNK lays the foundation for an overall motor control solution. The optional small package option and extremely high temperature support make this ASSP highly suitable for PCB designs in harsh environmental conditions and when space is very limited.

Product features

The ASSP solution dedicated to motor control integrates 32-bit level performance with 16-bit level price.

An innovative 32MHz 32-bit RISC-V CPU core with cost-optimized specifications

Rich analog IP functions, including an ADC equipped with 3 dedicated PGA and sampling and holding circuits, 2 Dacs, 2 comparators, and a temperature sensor

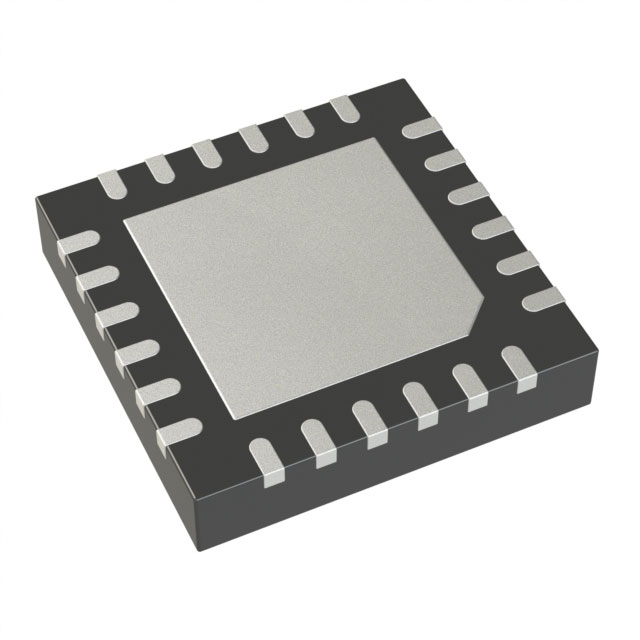

Advanced motor control timer, two watchdog timers for safety purposes, small QFN package (24 and 32-pin devices)

High-temperature support (125 ° C

Supports sensorless, single-motor vector control, single-shunt/triple-shunt, PFC and Hall sensor input

16 KB SRAM, including 4KB with ECC

Memory protection unit (CPU and bus)

Achieve rapid market launch through pre-developed software

Customizable parameters and application options

Easy-to-use PC GUI/ configuration tool support

Controlled by the external host I/F

Complete reference design: hardware, software, suites, tools, hardware manual, software manual, GUI manual, application instructions

Add motor control functions through cost-effective solutions

Avoid early-stage development investment

No need for professional skills in motor control

Application scenarios

Home/building automation

Consumption

Health care

Household appliances - general motors, power tools, fan motors, air conditioners/refrigerators and other household appliances, robots, toys
