The R5F564MGCDFC 32-bit microcontroller operates at a maximum frequency of 120 MHz, offering leading 5.06 CoreMark/MHz performance. This product adopts the RXv2 core. Compared with the existing RX products, the CoreMark/MHz performance of the RXv2 core has been increased by 1.48 times, power consumption has been reduced by 40%, and code efficiency is even higher, which is conducive to achieving high-speed and low-power systems. In addition, the R5F564MGCDFC is equipped with a large-capacity memory of up to 2.5MB of flash memory and 552KB of working RAM.

Technical parameters

Core processor: RXv2

Kernel specification: 32-bit

Speed: 120MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O number: 127

Program storage capacity: 2.5MB (2.5M x 8

Program memory type: Flash memory

EEPROM capacity: 64K x 8

RAM size: 552K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 3.6V

Data converter: A/D 29x12b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

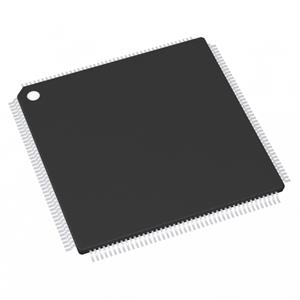

Package: 176-LFQFP (24x24)

Typical applications

The R5F564MGCDFC microcontroller is widely used in industrial equipment, network devices and other applications that require advanced real-time performance and large-capacity memory.
