The R5F564MFDDFB microcontroller integrates 2MB of flash memory and 552KB of SRAM, achieving outstanding connectivity and high performance, and is suitable for industrial equipment and other Internet of Things applications. This product belongs to the RX64M series and can operate at frequencies up to 120 MHz, offering leading performance of 5.06 CoreMark/MHz.

Main specifications

Product: R5F564MFDDFB

Core processor: RXv2

Kernel specification: 32-bit

Speed: 120MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O number: 111

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash memory

EEPROM capacity: 64K x 8

RAM size: 552K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 3.6V

Data converter: A/D 29x12b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

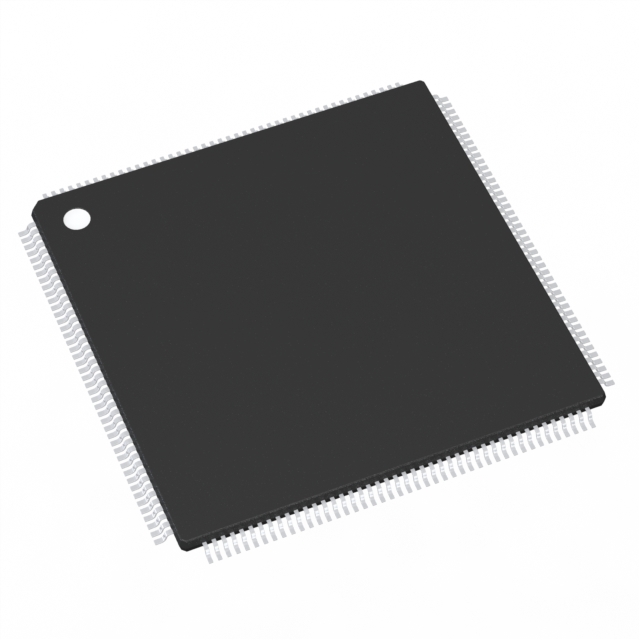

Supplier device packaging: 144-LFQFP (20x20)

Target application

The R5F564MFDDFB microcontroller is widely used in industrial equipment, network devices and other applications that require advanced real-time performance and large-capacity memory.
