As the flagship product of the RX family of 32-bit MCUS, the R5F564MFCDFB microcontroller employs a 40nm process. This device integrates the RXv2 core, operates at a frequency of 120MHz, and is equipped with zero-wait-cycle high-speed flash memory. It is suitable for industrial and network equipment that requires high-speed real-time performance and large-capacity memory. The RX64M series MCU enables system designers to develop high-performance, low-power industrial devices that support multiple communication functions more quickly and efficiently.

Main specifications

Core processor: RXv2

Kernel specification: 32-bit

Speed: 120MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O number: 111

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash memory

EEPROM capacity: 64K x 8

RAM size: 512K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 3.6V

Data converter: A/D 8x12b, 21x12b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

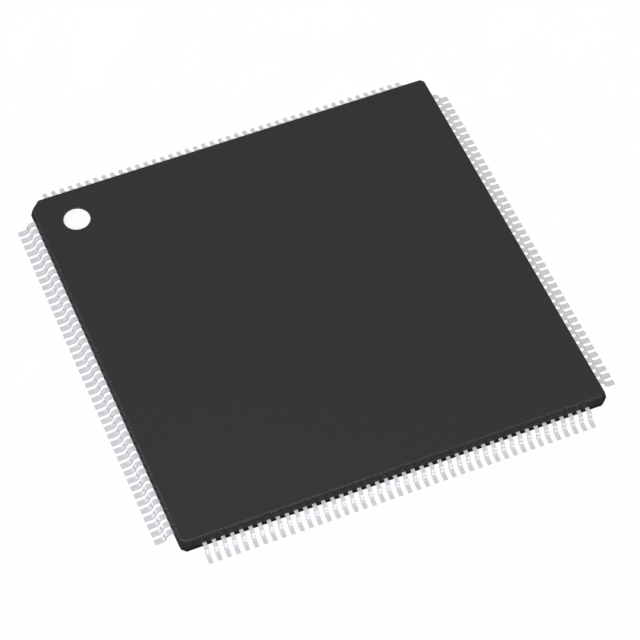

Package: 144-LFQFP (20x20)

Target application

The R5F564MFCDFB microcontroller is designed for industrial equipment, network devices and other applications that require advanced real-time performance and large-capacity memory.
