The R5F524UCADFP microcontroller is A 32-bit MCU based on the RXv2 core, with a main frequency as high as 80MHz. It is equipped with peripheral functions such as timers and A/D converters, and can control two brushless DC motors. This product is equipped with a built-in floating-point unit (FPU), making it highly suitable for dual inverter control and enabling it to easily execute complex inverter control algorithms. The built-in differential programmable gain amplifier and safety system can reduce the application cost of the system.

Technical specifications

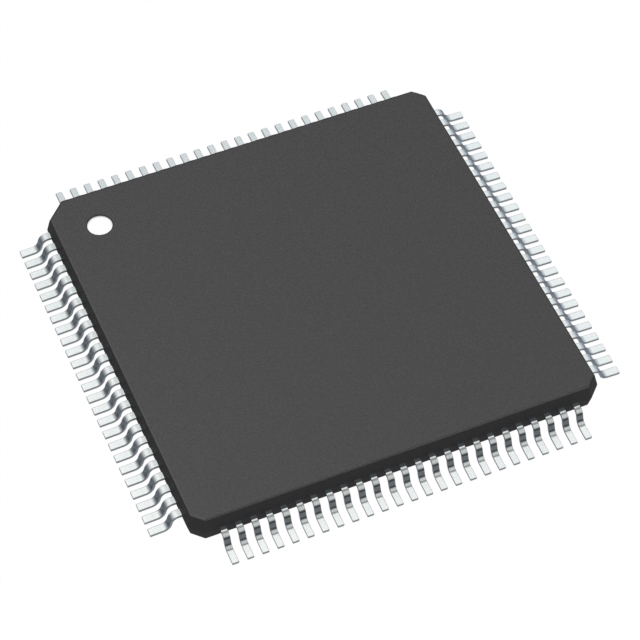

Product: R5F524UCADFP

Core processor: RXv2

Kernel specification: 32-bit

Speed: 80MHz

Connection capabilities: CANbus, I2C, SCI, SPI

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O number: 79

Program storage capacity: 384KB (384K x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 32K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 5.5V

Data converter: A/D 20x12b; D/A 2x8b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Package: 100-LFQFP (14x14)

Typical applications

The R5F524UCADFP is applicable to fields such as electric vehicles, industrial machinery, and home appliances. It supports dual-motor synchronous control and optimizes circuit design with limited space.
