The R5F524UCAGFB device belongs to the RX24U series of 32-bit microcontrollers launched by (Renesas), which is highly suitable for dual inverter control. Its built-in floating-point unit (FPU) enables it to easily execute complex inverter control algorithms. The built-in differential programmable gain amplifier and the accompanying safety system help to reduce the cost of the application system.

The R5F524UCAGFB mainly has the following specifications:

Core processor: RXv2

Kernel specification: 32-bit

Speed: 80MHz

Connection capabilities: CANbus, I2C, SCI, SPI

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O count: 110

Program storage capacity: 384KB (384K x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 32K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 5.5V

Data converter: A/D 22x12b; D/A 2x8b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

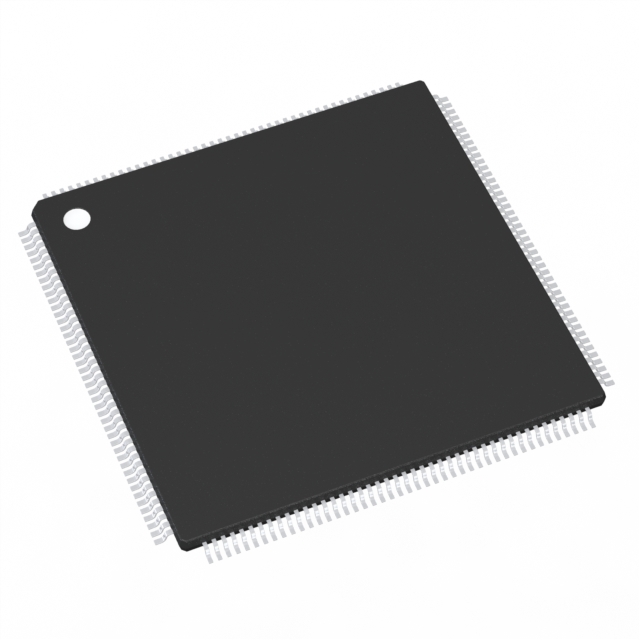

Package: 144-LFQFP (20x20)

Application scenarios

RX24U offers ready-to-use motor control solutions (including software and hardware design examples), helping customers shorten time to market and reduce the workload of software development and system design. The R5F524UCAGFB chip can be used in fields such as motor control, industrial equipment, household appliances, computer peripherals and power grids.
