The R5F524UBADFB is a 32-bit high-performance microcontroller launched by (Renesas), specifically designed for motor control, featuring a differential amplifier and safety functions. Youdaoplaceholder0 This microcontroller is based on the RXv2 core, with a main frequency up to 80MHz, an integrated floating-point operation unit (FPU), and supports complex inverter control algorithms.

Main specifications

Core processor: RXv2

Kernel specification: 32-bit

Speed: 80MHz

Connection capabilities: CANbus, I2C, SCI, SPI

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O count: 110

Program storage capacity: 256KB (256K x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 32K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 5.5V

Data converter: A/D 22x12b; D/A 2x8b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

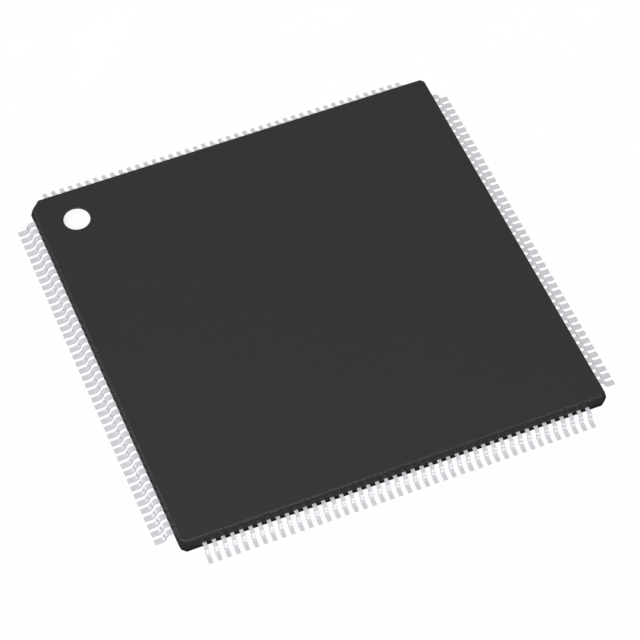

Package: 144-LFQFP (20x20)

Application scenarios

The R5F524UBADFB microcontroller can be used in fields such as motor control, industrial equipment, household appliances, computer peripherals and power grids.
