R5F524T8ADFM is a 32-bit microcontroller of the RX24T series launched by (Renesas). It adopts the RXv2 core, has a main frequency of 80MHz, and supports 153.6 DMIPS computing power.

Core parameters

Core processor: RXv2

Kernel specification: 32-bit

Speed: 80MHz

Connection capabilities: I2C, SCI, SPI

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O number: 48

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 16K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 5.5V

Data converter: A/D 12x12b; D/A 1x8b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

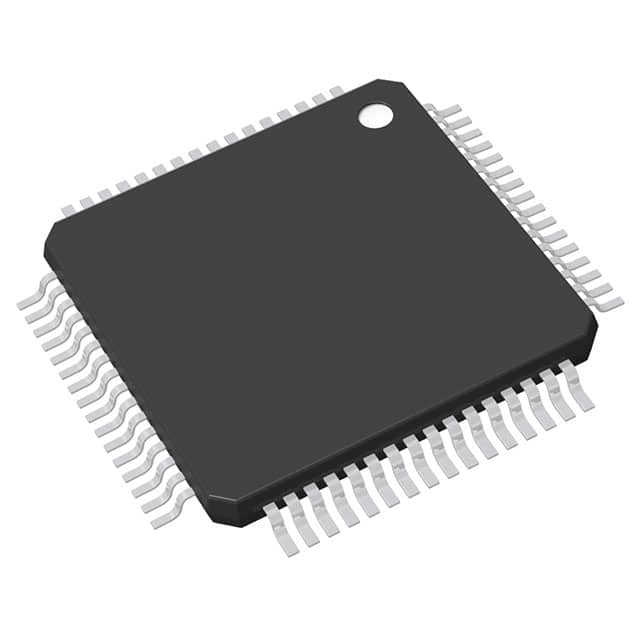

Package: 64-LFQFP (10x10)

Application scenarios

The R5F524T8ADFM is a 32-bit microcontroller suitable for dual inverter control, featuring an integrated floating-point unit (FPU), making it easy to program complex inverter control algorithms. This chip design is suitable for scenarios that require high-precision control, such as frequency converters and motor drives.
