The R5F524T8ADFK is a 32-bit microcontroller based on the RXv2 CPU core with a main frequency of 80MHz. It can achieve a performance of 153.6 DMIPS and supports 32-bit multiplication and accumulation as well as 16-bit multiplication and subtraction instructions. The R5F524T8ADFK belongs to the RX24T series and features an integrated floating-point unit (FPU), making it easy to program complex inverter control algorithms.

Technical specifications

Core processor: RXv2

Kernel specification: 32-bit

Speed: 80MHz

Connection capabilities: I2C, SCI, SPI

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O number: 48

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 16K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 5.5V

Data converter: A/D 12x12b; D/A 1x8b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

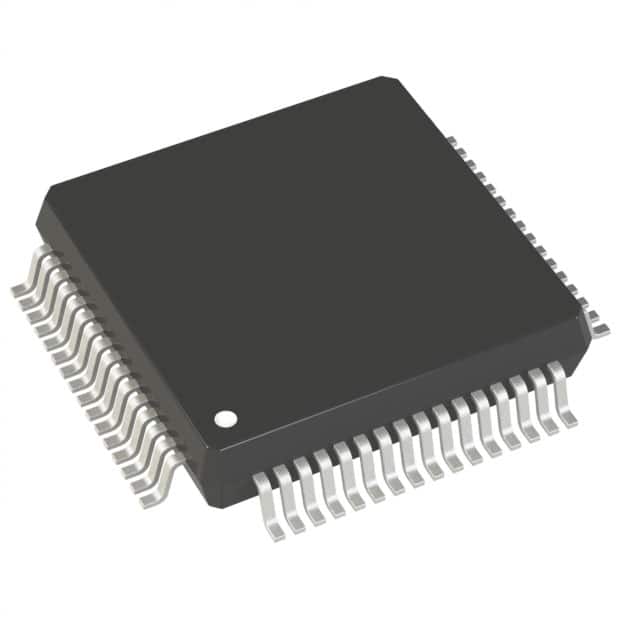

Package: 64-LQFP (14x14)

Target application

"Industry

Office automation

Household appliances
