Trade Name:32-bit Microcontrollers - MCU
Brand:Renesas
Particular Year:25+
Package:LFQFP-48
Delivery Date:New and original
Stock: 2000pcs

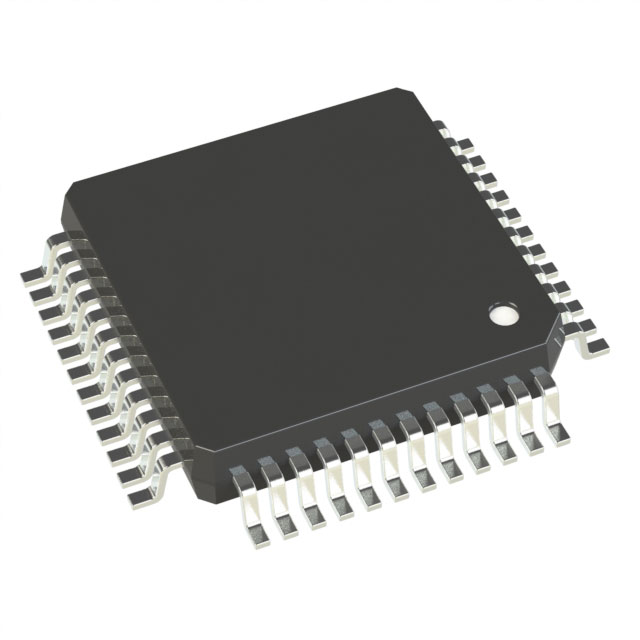

The R5F51111AGFL device belongs to the RX111 series microcontroller with small-capacity read-only memory (ROM) launched by (Renesas). It features a USB 2.0 interface that complies with the battery charging specification (BC 1.2), low current consumption characteristics, and can be quickly awakened from standby mode. It is applicable to fields such as computer peripherals, healthcare, and wearable devices.
With its three-phase motor control timer, the R5F51111AGFL microcontroller is also suitable for motor control applications in household appliances and industrial equipment.
Technical specifications
Core processor: RX
Kernel specification: 32-bit
Speed: 32MHz
Connection capabilities: I2C, SCI, SPI, USB
Peripheral devices: DMA, LVD, POR, PWM, WDT
I/O count: 30
Program storage capacity: 32KB (32K x 8)
Program memory type: Flash memory
EEPROM capacity: 8K x 8
RAM size: 10K x 8
Voltage - Power supply (Vcc/Vdd) : 1.8V to 3.6V
Data converter: A/D 10x12b
Oscillator type: Internal
Operating temperature: -40°C to 105°C (TA)
Installation type: Surface mount type
Packaging/Housing: 48-LFQFP
Typical applications
Consumer goods (battery-powered
Smart home devices (such as refrigerators and washing machines
Industrial control systems (such as building management systems)
Medical electronics (such as health monitoring devices)
