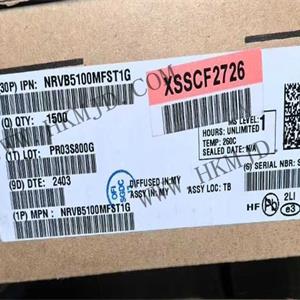

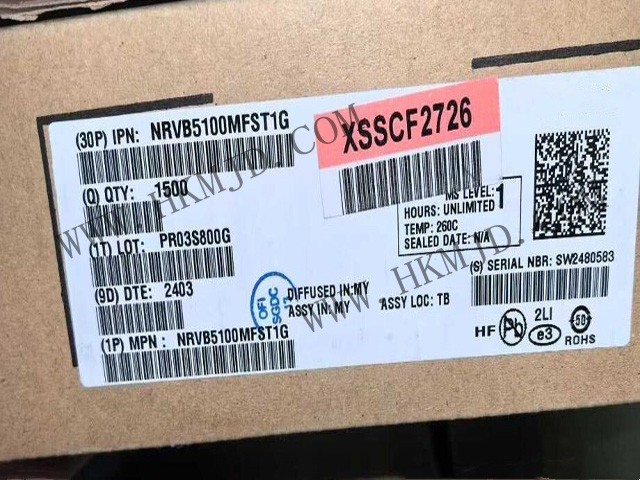

For picture reference, please see the specifications
< >

Commodity Model:NRVB5100MFST1G

Trade Name:Schottky Diode and Rectifier

Brand:ON

Particular Year:24+

Package:SO-8FL

Delivery Date:New and Original

Stock: 20000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ON
Model
NRVB5100MFST1G
Package
SO-8FL
Describe
5A 100V Schottky Rectifier in SO-8FL

Product Description

The NRVB5100MFST1G  is a newly launched single-channel 5A 100V low forward voltage Schottky rectifier in an SO-8FL package. The SO-8FL package bridges the gap between DPAK and SMC packages. Its PCB footprint is similar to that of the SMC package, but its thermal performance is almost on par with that of the DPAK package. The package height is 1.0mm, making it suitable for applications with limited space constraints.


Features

• Low power consumption/high efficiency

• New package supports on-board post-test and probe testing

• Guard ring design provides stress protection

• Low forward voltage drop

• 175°C operating junction temperature

• The NRVB prefix is suitable for automotive and other applications requiring unique field and control change requirements; compliant with AEC-Q101 standards and supports PPAP

• These are lead-free devices


Mechanical characteristics:

• Housing: Epoxy resin, molded

• Epoxy resin meets UL 94-0 flame retardant rating @ 0.125 inches

• Pin surface treatment: 100% matte tin (Sn)

• Pin and mounting surface temperature during soldering: Maximum 260°C for 10 seconds

• Device meets MSL 1 requirements


NRVB5100MFST1G Parameters

Product:    Schottky rectifier

Package/Case:    SO-8FL-4

Configuration:    Single

Technology:    Si

If - Forward current:    5 A

Vrrm - Repetitive reverse voltage:    100 V

Vf - Forward voltage:    760 mV

Ifsm - Forward Surge Current:    75 A

Ir - Reverse Current:    3 uA

Minimum Operating Temperature:    -55°C

Maximum Operating Temperature:    +175°C


Applications

• Power conversion circuits

• Reverse battery protection

• Gate drive circuits

• Protection and freewheeling
