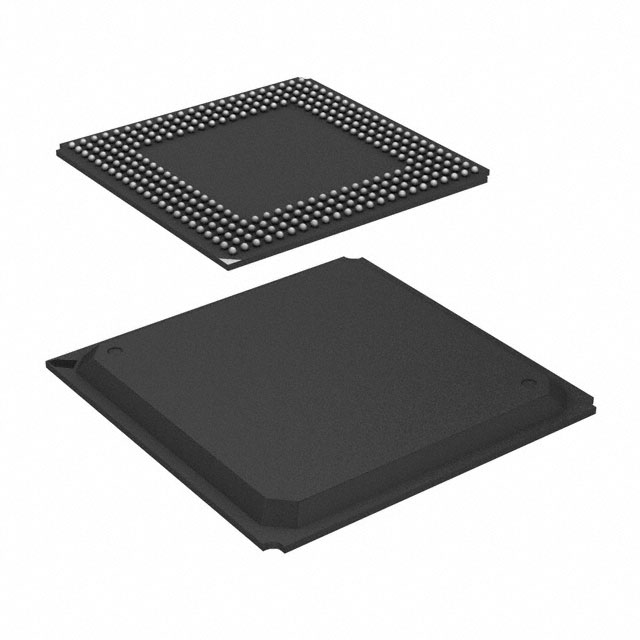

R7F701215EABA is an automotive microcontroller launched by (Renesas), with a main frequency as high as 240MHz, specifically designed for the field of automotive engine control. The CPU core of the R7F701215EABA microcontroller offers 30% higher performance for engine control system applications than its predecessor. The RH850/E1M-S2 supports the SENT sensor information communication standard, which not only supports CAN FD for higher-speed in-vehicle networks but also ICU-S for automotive safety required in future vehicles. It also has many built-in functions for achieving functional safety (ISO 26262), facilitating certification.

Feature

CPU core

240MHz core x1 (including lockstep dual-core x1)

80MHz core (peripheral control core) x1

FPU x1

Clock

Main oscillator: 20 MHz

PLL with optional SSCG mode: 240MHz

PLL without SSCG mode: 80 MHz

On-chip low-speed oscillator: 240 kHz

Data transmission: DMAC/DTS

Timers: Engine Control Timer (ATU-IV), Autonomous Pulse Adapter (APA), Motor Control Timer (TSG2) 2 channels, Timer Option (TAPA) 2 channels

Simulation

SAR A/D converter with 48 channels and 2 modules

ΔΣA/D converter with 8 channels and 8 modules

Communication interface

Serial communication interface (SCI3) 4 channels

Clock Synchronization Serial Interface (CSIH) 4-channel

High-speed bus (RHSB) 2 channels

LIN/Master (RLIN2) 1 channel, CAN/CAN-FD (optional) 4 channels

FlexRay 1 unit

Send I/F (RSENT) 6 channels

Digital Filter Engine (DFE) 16 channels, 1 unit

Safety

Multi-input Signature Generator (MISG

Clock monitor

Watchdog timer

Safety watchdog timer

Memory protection function

Voltage monitor

Power supply voltage

1.15-1.35V (CPU core)

3.0-3.6V / 4.5-5.5V (I/O, System, AD converter)

Temperature: Tj= -40-150°C

Target application

The R7F701215EABA microcontroller is mainly applied in the automotive electronics field, such as battery management systems (BMS), electronic power steering systems, and other scenarios with high requirements for power consumption and safety.
