The R7F7010303AFP is a high-end on-board microcomputer from Renesas, designed for automotive body applications. The following are its core features:

CPU: G3K core, up to 80MHz

Voltage: 3V to 5.5V

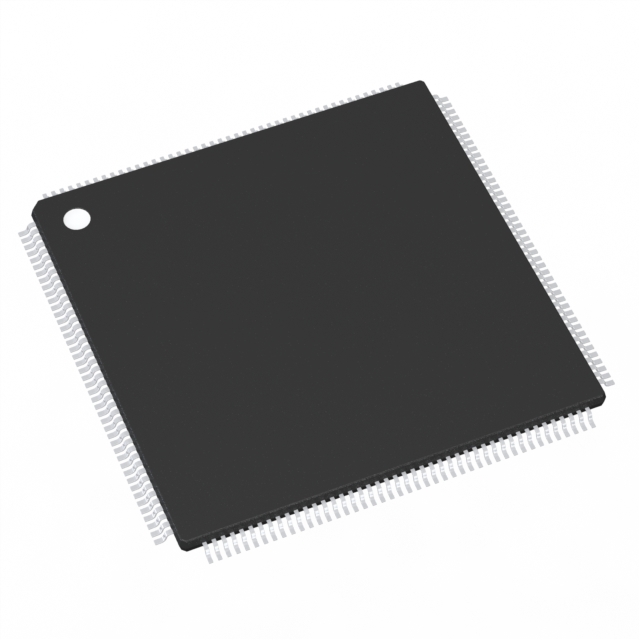

Encapsulation: 144-pin LFQFP

Memory: SRAM maximum 192KB, program flash memory maximum 2MB

Timer: 8-channel 32-bit timer, 48-channel 16-bit timer, 2-channel watchdog timer, OS x 1-channel timer

PWM: 72-channel PWM output, 3-phase PWM output function

Analog function: 4-channel 10-bit A/D converter, 91-channel 12-bit A/D converter

On-chip oscillator (MHz) : 8MHz, low speed: 240kHz

Others: PLL, RTC, power-on reset, low voltage detection

R7F7010303AFP is a high-end microcontroller with a 32-bit RH850G3K core, used for body control. The features of this device are low power consumption, high processing capacity and variable peripheral functions.

In particular, low power consumption has been achieved by supporting wide standby control using port polling and power insulation, standby control for AD conversion, and LIN communication considering body control applications.

The R7F7010303AFP supports security and safety features. And the local area network has been strengthened by upgrading the CAN and LIN master/slave modules.

Application scenarios

R7F7010303AFP is mainly used in key automotive control systems such as engine control, braking systems, and driver assistance systems.
