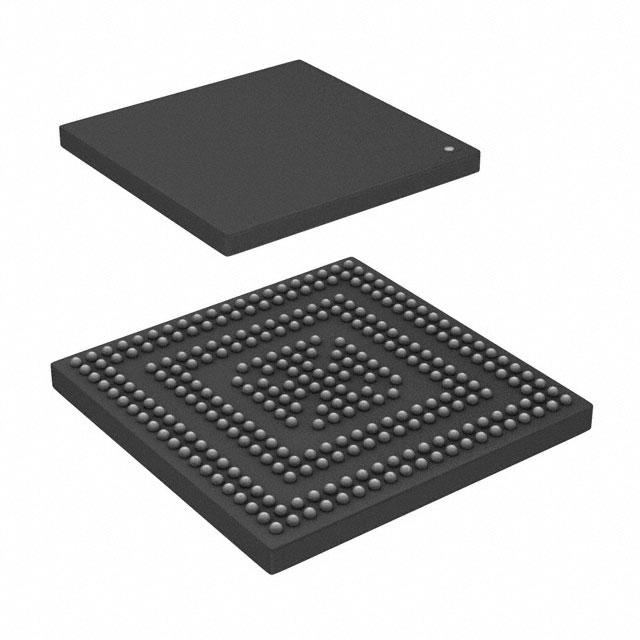

The RH850/U2B is a Renesas cross-domain automotive microcontroller family. As a new generation of high-end automotive control devices, the R7F70254FAFABB-C is designed to meet the growing demand for integrating multiple applications onto a single chip, in order to achieve a unified electronic control unit (ECU) for the evolving electrical and electronic architecture (E/E architecture). With 28-nanometer (nm) process technology, R7F70254FAFABB-C supports step locking technology, complies with ISO 26262 ASIL-D standard, has built-in EVITA Full information security function, and supports Full No-Wait OTA software update.

Main features

The rate is 400 MHZ, supporting up to 4+ up to 3 (lockstep core) RH850 G4MH cpus

Top performance to energy consumption ratio

Up to 10MB of flash memory

Up to 1.28MB of memory

Equipped with embedded EMU3S (embedded motor control unit), RDC3X (position sensor interface) and TSG3 (motor timer), it can be used for the control of field-oriented traction motors (inverters)

It features up to 4 ADCs (12-bit), with a total of 94 channels, including 6+6+0+0 tracking and holding inputs

It features up to 10 DS-ADCs with digital filter engines

Up to 20 digital filtering engines

GTM v4.1 Vehicle Motion Timer

High-temperature support: Up to Tj=160°C

Adopt the most advanced level of interface

It is equipped with up to 2 100-megabit Ethernet TSNS

CAN-FD, SPI, RHSB (MSC), RHSIF, SENT, LIN, UART, I2C, PSI5

SFMA (Serial Flash Memory Interface

eMMC

Supports FuSa and security features

Equipped with an encryption security module fully supported by EVITA

ISO 26262 ASIL D

It has a broad ecosystem that can support the latest standards related to the fields of tools, hardware and software

Typical applications

Regional Control ECU

Domain control ECU

Communication gateway

Vehicle motion applications (xEV, ICE, TCU)
