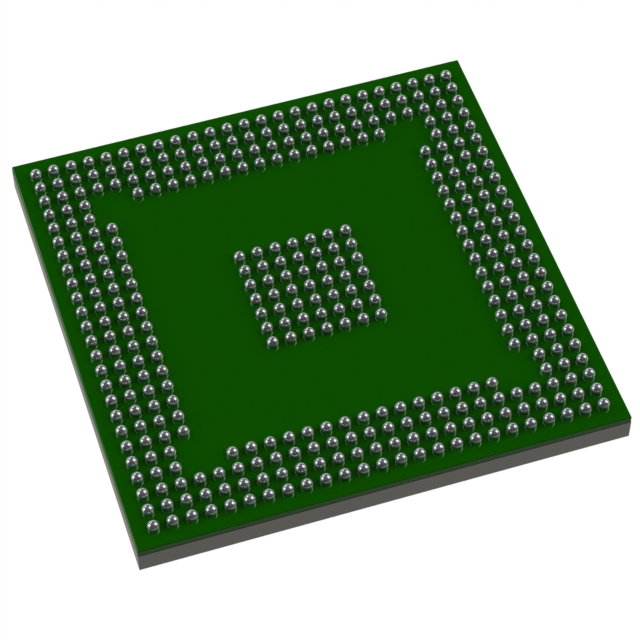

The R7F70254EAFABA-C is a cross-domain automotive microcontroller from (Renesas). As a new generation of high-end in-vehicle control devices, it aims to meet the growing demand for integrating multiple applications onto a single chip. With 28-nanometer (nm) process technology, the R7F70254EAFABA-C can achieve a unified electronic control unit (ECU) for the constantly evolving electrical and electronic architecture (E/E architecture).

Main features

The rate is 400 MHZ, supporting up to 4+ up to 3 (lockstep core) RH850 G4MH cpus

Top performance to energy consumption ratio

Up to 10MB of flash memory

Up to 1.28MB of memory

Equipped with embedded EMU3S (embedded motor control unit), RDC3X (position sensor interface) and TSG3 (motor timer), it can be used for the control of field-oriented traction motors (inverters)

It features up to 4 ADCs (12-bit), with a total of 94 channels, including 6+6+0+0 tracking and holding inputs

It features up to 10 DS-ADCs with digital filter engines

Up to 20 digital filtering engines

GTM v4.1 Vehicle Motion Timer

High-temperature support: Up to Tj=160°C

Application scenarios

The R7F70254EAFABA-C microcontroller is suitable for high-load scenarios such as hybrid/electric vehicle traction inverters, high-end area control, on-board gateways and domain control, and can be extended to body and chassis control systems.
