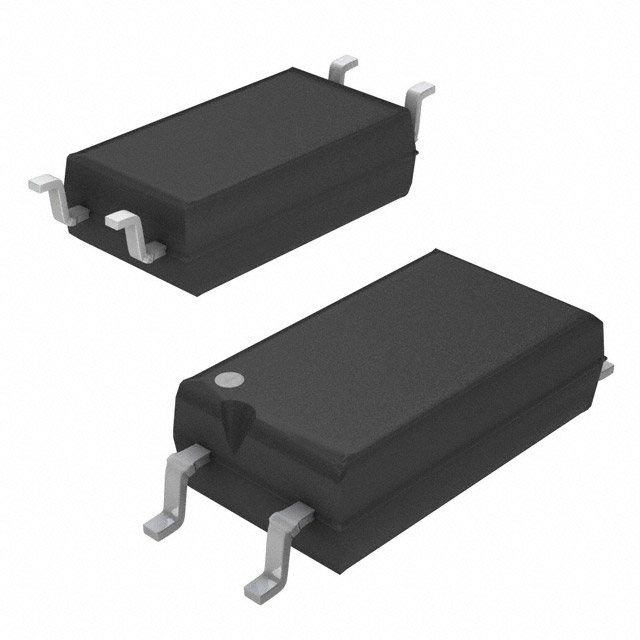

The RV1S2255ACCSP-10YV device is an optical coupling isolator in LSSOP package launched by (Renesas), featuring the following key characteristics:

The creepage distance is small and long (8.2mm, LSSOP

Ac input response

High current transfer ratio (CTR = 300% MIN, IF = 50μA)

Working environment temperature (maximum 115 °C)

High isolation voltage (BV = 5000Vrms)

Embossed tape products

RV1S2255ACCSP-10Yx#KC0:3500 pieces/roll

Lead-free products

Safety standards

UL: UL1577, dual protection

CSA: CAN/CSA-C22.2 No.62368-1, enhanced insulation

CQC: GB4943.1-2022, standard for reinforced insulation

VDE: DIN EN 60747-5-5 (Optional)

The input terminal of RV1S2255ACCSP-10YV contains AlGaAs LEDs, and the output terminal contains NPN silicon phototransistors. This LSSOP package is very thin and has a long creepage distance (8.2mm). This miniaturized optocoupler supports high-density surface mount and is suitable for various interface circuit layouts.

Application scenarios

RV1S2255ACCSP-10YV is mainly used in high-density layout of interface circuits and power control scenarios, including:

air conditioner

Measuring equipment

Power supply
