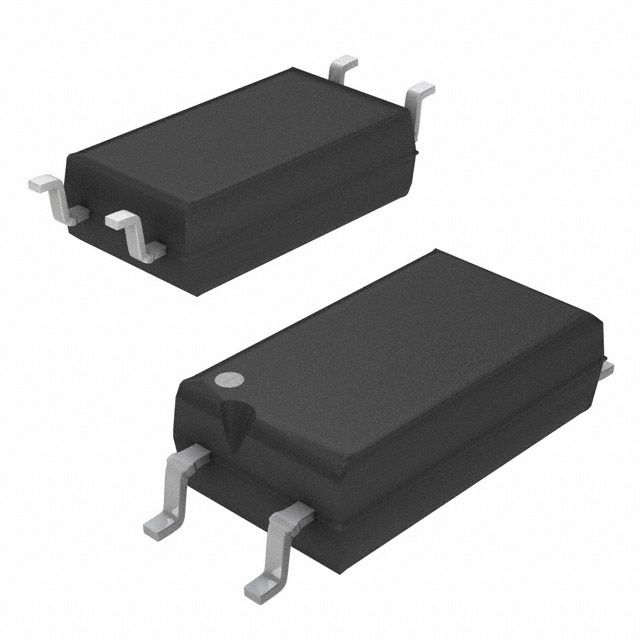

For picture reference, please see the specifications
< >

Commodity Model:RV1S2255ACCSP-10YC

Trade Name:Transistor Output Optocouplers

Brand:Renesas

Particular Year:25+

Package:LSSOP-4

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
RV1S2255ACCSP-10YC
Package
LSSOP-4
Describe
Low forward current (IF), photoelectric coupler with a creepage distance of 8.2mm (LSSOP)

Product Description

The RV1S2255ACCSP-10YC device is an optical coupling isolator packaged in LSSOP, with AlGaAs LEDs at the input end and NPN silicon phototransistors at the output end. This LSSOP package is very thin and has a long creepage distance (8.2mm). This miniaturized RV1S2255ACCSP-10YC optocoupler supports high-density surface mount and is suitable for various interface circuit layouts.


Key features

The creepage distance is small and long (8.2mm, LSSOP

Ac input response

High current transfer ratio (CTR = 300% MIN, IF = 50μA)

Working environment temperature (maximum 115 °C)

High isolation voltage (BV = 5000Vrms)

Embossed tape products

RV1S2255ACCSP-10Yx#KC0:3500 pieces/roll

Lead-free products

Safety standards

UL: UL1577, dual protection

CSA: CAN/CSA-C22.2 No.62368-1, enhanced insulation

CQC: GB4943.1-2022, standard for reinforced insulation

VDE: DIN EN 60747-5-5 (Optional)


Application scenarios

air conditioner

Measuring equipment

Power supply
