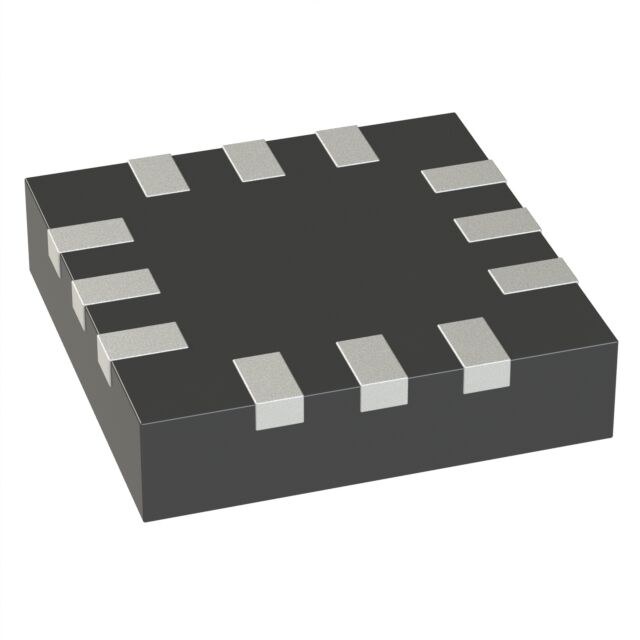

The DA7283-01FV2 is a linear resonant actuator (LRA) haptic driver that provides automatic closed-loop LRA resonant frequency tracking. This function ensures the consistency of LRA production tolerances, operating temperatures, aging and mechanical coupling. The DA7283-01FV2 can drive LRA motors within its supported range without any programming and will automatically lock to the correct LRA resonant frequency without providing any actuator information to the device.

Main features

■ LRA driving capability

■ No equipment programming required

■ Three GPI pins for triggering clicks and complex modes at two driver levels

■ Automatic LRA resonant frequency tracking

■ Ultra-low power consumption, IQ = 5 nA, when the device is disabled

■ Low latency (0.75 ms) GPI wakes up from the low-power idle state, IQ = 0.68 μA

■ Differential PWM output drive

■ Edge rate control for EMI suppression

■ Current-driven system, providing constant actuator power

■ Automatic short-circuit protection

■ Automatic over-temperature protection

■ Automatic under-voltage locking protection

■ Automatic haptic playback timeout when the host disappears

■ Supply monitoring and automatic output limits

Application field

DA7283-01FV2 is mainly applied in motor drives, haptic feedback systems and motion control modules in industrial automation.
