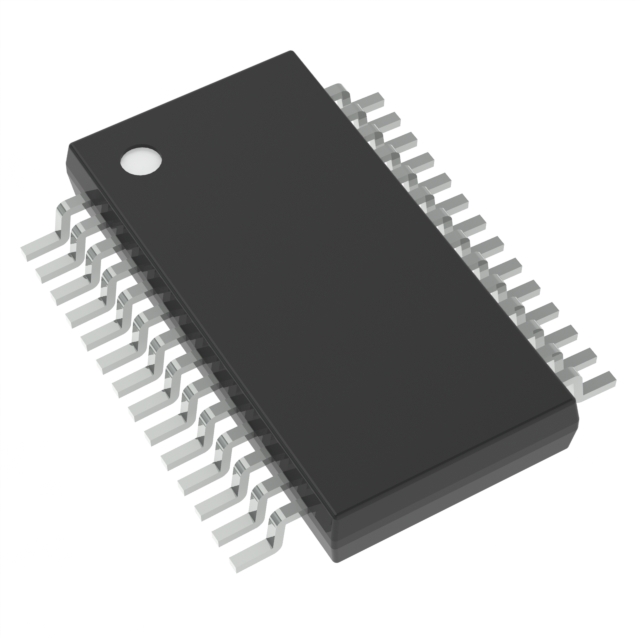

DSPIC33AK32MC102-E/SS: 200MHz, 32-bit Digital Signal Controller (DSC), SSOP-28

The following is a detailed description and specification of the Microchip (DSPIC33AK32MC102-E/SS) Digital Signal Controller (DSC):

The DSPIC33AK32MC102-E/SS is a 200MHz, 32-bit dsPIC33A digital signal controller (DSC) with a 32/64-bit floating-point unit (FPU), up to 128KB of Flash program memory and 16KB of SRAM data memory.

1. Product Details:

Model: DSPIC33AK32MC102-E/SS

Family: dsPIC™ 33AK

Package: SSOP-28

Type: 32-bit high-performance Digital Signal Controller (DSC)

Core Advantage: Combines the flexibility of an MCU with the high computational power of a DSP, optimised for high-speed real-time control.

Target applications: real-time control, motor control (e.g. BLDC/PMSM), digital power, industrial automation, automotive electronics, etc.

2. Specifications:

Core: dsPIC33AK

Number of Cores: 1 Core

Maximum Clock Frequency: 200 MHz

Package / Case: SSOP-28

Program Memory Size: 32 kB

Data RAM Size: 8 kB

L1 Cache Instruction Memory: 2 kB

Operating Supply Voltage: 3 V to 3.6 V

Series: dsPIC33A

Mounting Style: SMD/SMT

Minimum operating temperature: - 40 °C

Maximum operating temperature: + 125 °C

Data bus width: 16 bit

Interface type: BISS, I2C, I2S, SPI, UART

Number of inputs/outputs: 38 I/Os
