The CY8C5667AXQ-LP040 is a programmable system-on-chip (PSoC 5LP) based on a 32-bit ARM Cortex-M3 core, featuring 128 KB of Flash, 32 KB of SRAM, and 2 KB of EEPROM, with a maximum operating frequency of 67 MHz. The chip incorporates a 12-bit Δ-Σ ADC, a 12-bit SAR ADC, four operational amplifiers, four comparators, and four configurable digital modules (UDB), and supports the industry-leading CapSense® capacitive touch technology, truly achieving a ‘analogue + digital + touch’ three-in-one solution, providing high flexibility, low power consumption, and high reliability in a single-chip solution for industrial control, automotive electronics, smart home, and medical devices.

CY8C5667AXQ-LP040 Key Features

• High-performance Cortex-M3: 67 MHz, single-cycle multiplier, hardware divider

• Large memory capacity: 128 KB Flash + 32 KB SRAM + 2 KB EEPROM

• Dual ADCs:

– 1× 12-bit Δ-Σ ADC (up to 192 ksps with PGA)

– 1× 12-bit SAR ADC (up to 1 Msps)

• Analog front end: 4× Op-Amps, 4× Comparators, voltage reference, temperature sensor

• Digital UDB: 4 general-purpose digital blocks, flexibly configurable as PWM, timer, counter, SPI, I²C, UART, etc.

• Capacitive touch: Hardware CapSense® engine, supporting 24 self-capacitive/mutual-capacitive channels, SmartSense™ automatic tuning

• Rich communication interfaces: USB 2.0 FS Device, I²C, SPI, UART, LIN, CAN

• Operating voltage: 1.71 V – 5.5 V, ultra-low power consumption

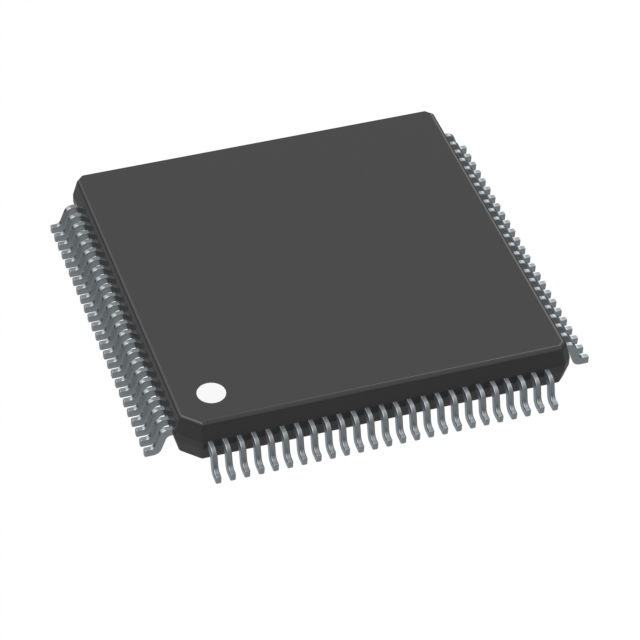

• Package and temperature: 100-TQFP (14 mm × 14 mm), -40 °C to +105 °C

CY8C5667AXQ-LP040 Typical Applications

• Industrial HMI: Capacitive buttons/sliders, 4-20 mA sensing, motor control

• Automotive electronics: BCM, in-vehicle air conditioning panels, tyre pressure monitoring

• Smart home: Smart switches, thermostats, IoT gateways

• Medical devices: Portable monitors, blood glucose meters
