The CY8C20447S-24LQXI is an 8-bit M8C core-based programmable system-on-chip (PSoC 1) operating at a voltage of 1.71 V to 5.5 V, with 16 KB of Flash + 2 KB of SRAM and a maximum clock speed of 24 MHz. The chip includes a capacitive sensing (CapSense®) hardware engine, supporting up to 31 buttons, 6 touch strips, or proximity sensors, and features the SmartSense™ automatic tuning algorithm, which automatically compensates for process/temperature drift during operation, maintaining optimal sensitivity without manual calibration.

CY8C20447S-24LQXI Key Features

• Capacitive Sensing:

– 0.1 pF sensitivity, supporting 15 mm glass / 5 mm plastic cover plates

– 28 µA per channel (125 ms cycle scan) ultra-low power consumption

– Driven Shield functionality enhances waterproofing and reliability in metal environments

• Power and Consumption:

– Operating: 1.1 mA (12 MHz, 3.3 V, typical)

– Standby: 1.1 µA; Deep Sleep: 0.1 µA

• I/O and Peripherals:

– 29 GPIO pins, with 27 configurable as CapSense I/O

– 10-bit incremental ADC, dual analogue comparators, I²C/SPI, 3×16-bit Timer

• Operating Temperature: -40 °C to +85 °C

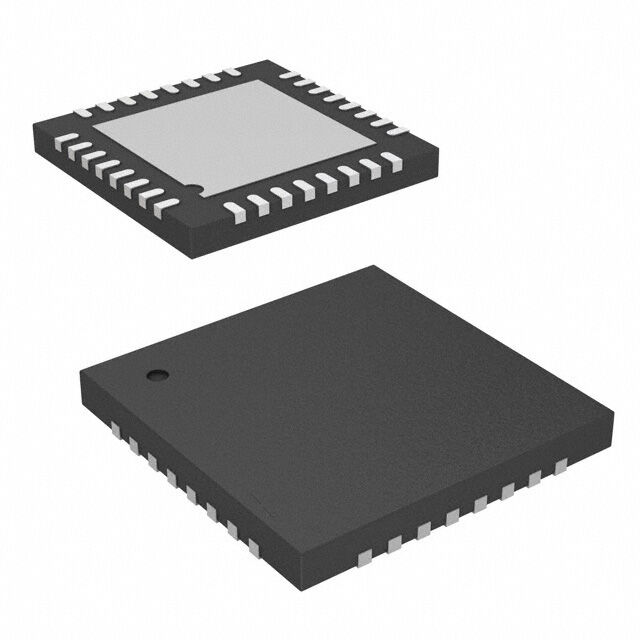

• Package: 32-QFN 5 mm × 5 mm with exposed pad for improved heat dissipation and EMI control

CY8C20447S-24LQXI Typical Applications

• Home appliance touch panels: washing machines, microwave ovens, ovens

• Smart home: wall switches, dimmers, door locks

• Industrial human-machine interfaces: handheld instruments, control boxes

• Automotive interiors: steering wheel buttons, overhead light touch controls, air conditioning panels
