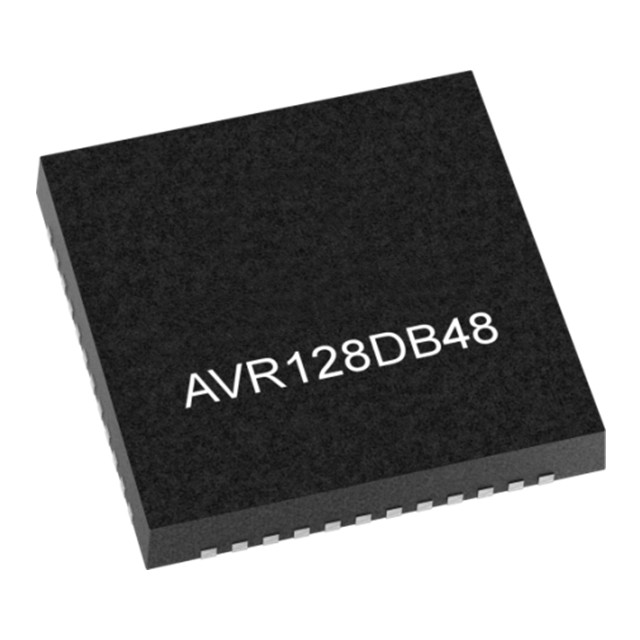

The AVR128DB48-E/6LX is an 8-bit microcontroller (MCU) launched by Microchip, belonging to the AVR®DB series. It is mainly targeted at industrial control, home appliances, Internet of Things (IoT), and sensor applications. The following are its technical parameters:

Core processor: AVR

Kernel specification: 8 bits

Speed: 24MHz

Connection capabilities: I2C, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 41

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 16K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 5.5V

Data converter: A/D 18x12b; D/A 1x10b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Device package: 48-VQFN (6x6)

The AVR128DB48-E/6LX MCU is based on the low-power performance of the AVR core and features a world-class core-independent peripheral (CIP) and full-load intelligent analog product portfolio. The Analog Signal conditioning (ASC) module consists of three on-chip operational amplifiers (OPAMPs), enabling signal conditioning without the need for external components. This multi-voltage I/O system supports secure two-way communication with systems operating at different voltages.

The AVR128DB48-E/6LX MCU features an event system, configurable custom logic (CCL), and intelligent analog peripherals, making it highly suitable for sensor applications, iot terminal nodes, and other applications that require signal conditioning or level conversion.
