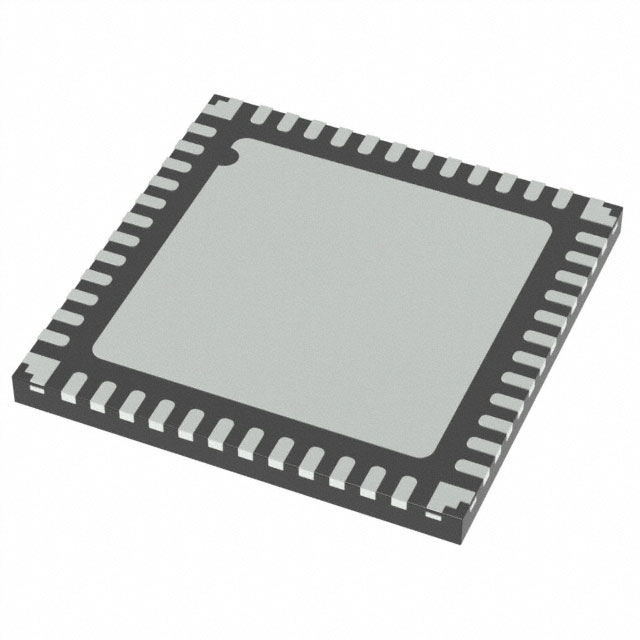

DSPIC33CK32MC105-E/M4 (UQFN-48): High-Performance 16-bit dsPIC™ 33CK Digital Signal Controller (DSC)

DSPIC33CK32MC105-E/M4 Specifications:

Core Processor: dsPIC

Core Specification: 16-bit

Speed: 100MHz

Connectivity: I2C, IrDA, LINbus, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, Smart Card. WDT

Number of I/O: 39

Program Memory Capacity: 32KB (32K x 8)

Program Memory Type: Flash

EEPROM Capacity-

RAM Size: 8K x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 15x12b; D/A 1x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA) )

Mounting Type: Surface Mount

Vendor Device Package: 48-UQFN (6x6)

Package/Housing: 48-UFQFN Unpadded

Related Information:

Microchip's dsPIC33CK64MC10X family of digital signal controllers (DSCs) integrate a DSP and enhanced on-chip peripherals in a single 100 MHz dsPIC® DSC core. These DSCs can be designed for motor control, advanced sensing and control, touch, general-purpose high-performance and robust applications.

In the field of motor control, this family is ideally suited for cost-competitive automotive, consumer, and industrial applications. dsPIC33CK64MC105 series DSCs are ideal for controlling BLDC, PMSM, ACIM, SR, and stepper motors. dsPIC33CK64MC105 has a high level of peripheral integration, enabling applications to achieve power factor correction (PFC) and motor control with a single DSC. correction (PFC) and motor control using a single DSC.
