DSPIC33CK32MC103-E/M5: dsPIC® DSC - 100MHz, 16-bit Digital Signal Controller (DSC), UQFN-36

Model: DSPIC33CK32MC103-E/M5

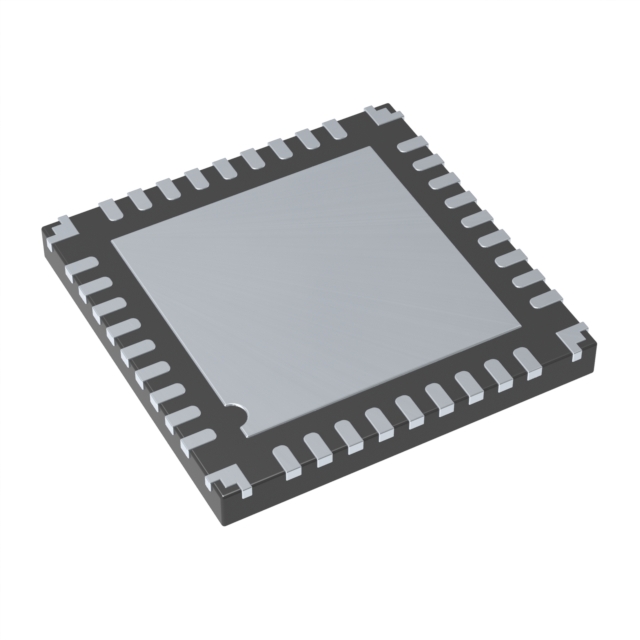

Package: UQFN-36

Type: 16-bit Digital Signal Controller (DSC)

Product Details: dsPIC™ 33CK, Functional Safety (FuSa) Microcontroller IC 16-bit, 100MHz 32KB (32K x 8) Flash Memory 36-UQFN (5x5)

DSPIC33CK32MC103-E/M5 Product Features:

Operating Conditions

3.0 V to 3.6 V

-40ºC to +125ºC, DC to 100 MHz

-40ºC to +150ºC, DC to 70 MHz

dsPIC33CK DSC core

Up to 64 KB bytes of program flash with ECC and fault injection testing

Up to 8 KB bytes of data SRAM with memory built-in self-test (MBIST)

Modified Harvard Architecture with 16-bit data and 24-bit instructions

Code-efficient (C and assembly) CPU architecture designed for real-time applications Code-efficient (C and assembly) CPU architecture designed for real-time applications

16 16-bit working registers

Four sets of interrupt context-saving registers, including ACC and CPU status registers for fast interrupt handling

Single-cycle mixed-symbol 32-bit multiplication

Fast 6-cycle hardware 32/16 and 16/16 DIVs

Dual 40-bit fixed-point accumulators (ACCs) for DSP operation

Single-cycle MAC/MPY with dual data fetch and write-back results Single-cycle MAC/MPY
