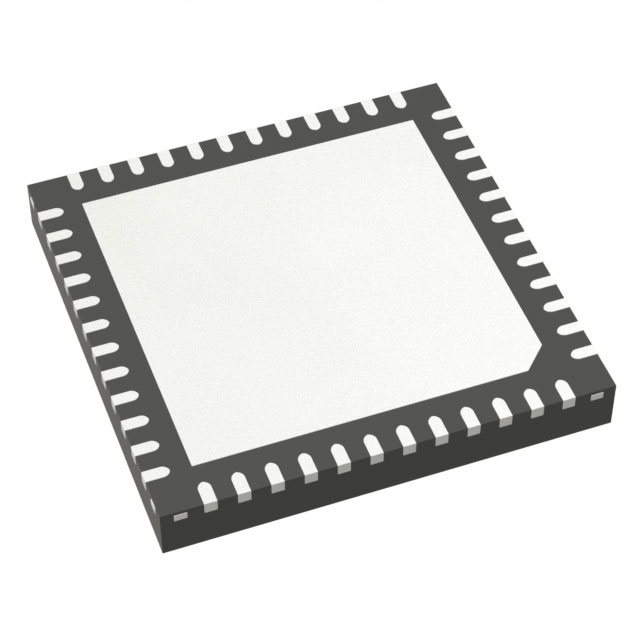

The STM32U375CGU6 is an ultra-low power microcontroller based on the ARM Cortex-M33 core from (ST). It is mainly targeted at application scenarios that need to balance low power, high performance and security. This product adopts the ARM Cortex-M33 core, supports TrustZone security technology, has built-in MPU, DSP and FPU, and operates at a frequency of up to 96 MHz.

The STM32U375CGU6 also embeds speed memory (1MB flash memory and 256-Kbytes SRAM), an Octo/Quad-SPI flash memory interface, enhanced I/O, peripherals connected to three APB buses, two AHB buses and a 32-bit multi-AHB bus matrix. This MCU integrates the protection mechanisms of embedded flash memory and SRAM.

Meanwhile, The STM32U375CGU6 also offers two 12-bit ADCs (2.5Msps), two comparators, two operational amplifiers, two DAC channels, an internal voltage reference buffer, a low-power RTC, three general-purpose 32-bit timers, a 16-bit PWM timer dedicated to motor control, three general-purpose 16-bit timers, and two One basic 16-bit timer and up to four 16-bit low-power timers.

STM32U375CGU6 also supports multiple standards and advanced communication interfaces, such as:

Three I²C interfaces

Two I3C interfaces

Three SPI interfaces and one OCTOSPI interface

Two USArts, two UArts and one low-power UART

One SAI interface

One SDMMC interface

One FDCAN interface

One full-speed USB port

And a variety of peripherals that enhance security:

One public key accelerator (PKA) with DPA protection

One hash (SHA-256) hardware accelerator

One true random number generator

Application field

The STM32U375CGU6 microcontroller is widely used in industrial control, battery management systems (BMS), wearable devices and other fields with high requirements for power consumption and safety. ‌
