The R7F701370AEEBG is a 32-bit automotive microcontroller (MCU), a high-end version of the RH850/P1x family, designed for sensor fusion, gateway, and advanced chassis system applications that enable advanced systems in future automobiles.

The R7F701370AEEBG is equipped with A 32-bit 2-unit RH850G3M lock-step dual-core CPU, security technology, code flash memory, data flash memory, RAM module, DMA controller, as well as multiple communication interfaces for automotive applications, A/D converters, timer units and other devices. The R7F701370AEEBG is designed for automotive applications that comply with functional safety standards (ISO26262).

Main features

CPU: G3M core, maximum 240MHz

Voltage: 3V to 3.6V

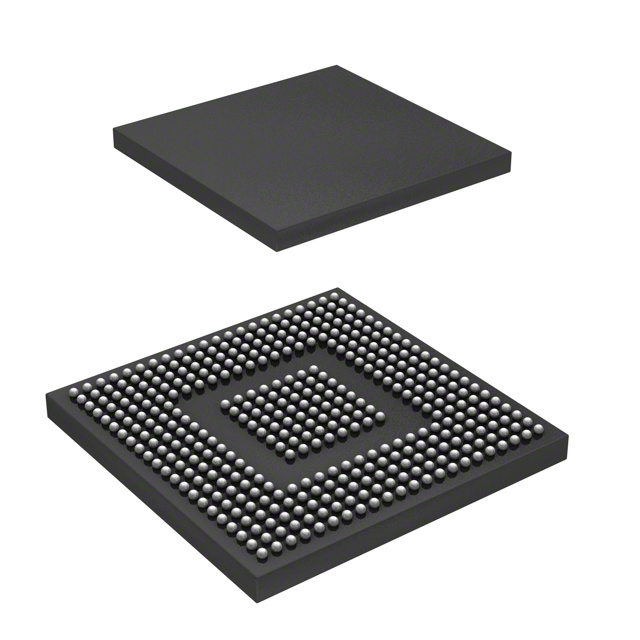

Package: FBGA with pins 404

Memory: SRAM maximum 1.5MB, program flash memory maximum 10MB

Timer: 37-channel 16-bit timer, 2-channel watchdog timer, STM x 2 units, GTM (ARU, CMU, TBU, MCFG, ICM, CMP, MON, DTM x 3 units, MCS x 2 units)

Analog function: 40-channel 12-bit A/D converter

On-chip oscillator MHz: 16 MHz

Others: PLL, power-on reset

Typical applications

Automobile chassis and safety
