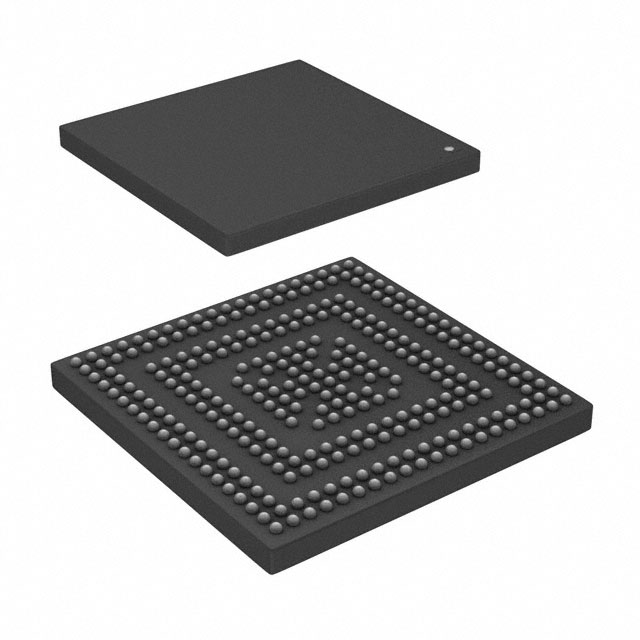

The R7F702302FABB-C microcontroller is the first product of Renesas' cross-domain MCU product series. As a new generation of automotive control devices, it is designed to meet the growing demand for integrating multiple applications onto a single chip. To achieve a unified electronic control unit (ECU) for the constantly evolving electrical and electronic architecture (E/E architecture). With 28-nanometer (nm) process technology, the 32-bit RH850/U2A MCU is realized based on the key functions of the RH850/Px series for chassis control and the RH850/Fx series for body control, thereby further enhancing performance.

The R7F702302FABB-C is equipped with up to four 400 MHz CPU cores featuring a dual-core lockstep structure. Each CPU core integrates hardware-based virtualization assistance functions, allowing multiple software systems that meet different ISO26262 functional safety levels to operate independently in high-performance mode without interference.

The main features include

The rate is 400 MHZ, supporting up to 4+4 (lockstep core) RH850 G4MH cpus

Top-notch performance-to-power ratio

Up to 16MB of flash memory

Up to 3.6MB of memory

It features up to 3 ADCs (12-bit), with a total of 94 channels, including 4+4 tracking and holding inputs

GTM v3.5 Vehicle Motion Timer

A variety of general-purpose timer modules, including watchdog, OS, and TAUx

High-temperature support: Up to Tj=160°C

Low power consumption

Adopt the most advanced level of interface

It features up to two types of Ethernet AVBs, including Gigabit Ethernet (Gbit) and Fast Ethernet (100MBit).

CAN-FD, FlexRay, SPI, RHSIF, SENT, LIN, UART, I2C, PSI5, CXPI

SFMA (Serial Flash Memory Interface

eMMC

Support functional safety and information security

Equipped with an encryption security module that supports EVITA full

ISO26262 ASIL-D

It has a broad ecosystem that can support the latest standards related to the fields of tools, hardware and software

Hypervisor support

Typical application fields

Regional Control ECU

Domain control ECU

Communication gateway

Chassis and safety

Energy management
