The R5F109LDCKFB is a low-power microcontroller designed based on a 16-bit RL78 core, with a main frequency of up to 32 MHZ, featuring 48KB of flash memory and 3KB of SRAM. The following are its main specifications:

Core processor: RL78

Kernel specification: 16 bits

Speed: 32MHz

Connection capabilities: CSI, I2C, LINbus, UART/USART

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O number: 48

Program storage capacity: 48KB (48K x 8)

Program memory type: Flash memory

EEPROM capacity: 4K x 8

RAM size: 3K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 5.5V

Data converter: A/D 12x8/10b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

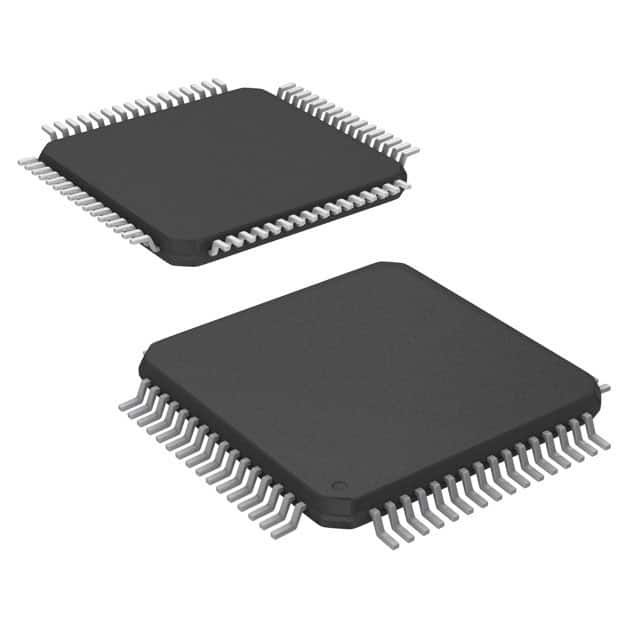

Packaging/Housing: 64-LQFP

Typical application fields of R5F109LDCKFB

Body control: Keyless sensor door lock, power Windows, rearview mirror adjustment.

High-temperature electromechanical systems: engine control unit, lamp drive.

Low-power sensor nodes: Battery management system (BMS), tire pressure monitoring.
