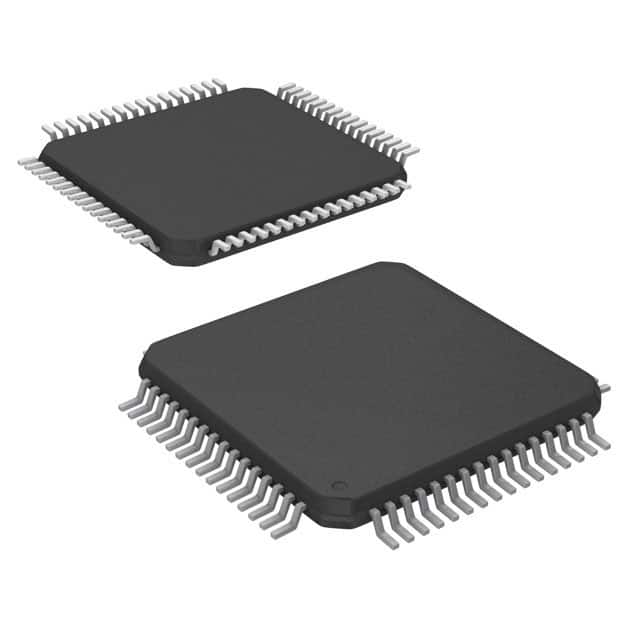

The R5F109LACJFB microcontroller features a 64-pin LQFP package and 16KB of program flash memory, enabling an industry-leading low current consumption level. The R5F109LACJFB is equipped with a LIN module as an automotive interface. With multiple functional safety features such as built-in flash CRC calculation, illegal memory access detection, RAM protection, A/D converter testing, and SFR protection, the R5F109LACJFB microcontroller is suitable for automotive applications.

Key parameters

Core processor: RL78

Kernel specification: 16 bits

Speed: 32MHz

Connection capabilities: CSI, I2C, LINbus, UART/USART

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O number: 48

Program storage capacity: 16KB (16K x 8)

Program memory type: Flash memory

EEPROM capacity: 4K x 8

RAM size: 1K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 5.5V

Data converter: A/D 12x8/10b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Packaging/Housing: 64-LQFP

Application scenarios

Car audio

Vehicle body

Chassis and safety

HEV/EV

Motor control
