Trade Name:Video Amplifier
Brand:ADI
Particular Year:24+
Package:QSOP-24
Delivery Date:New and Original

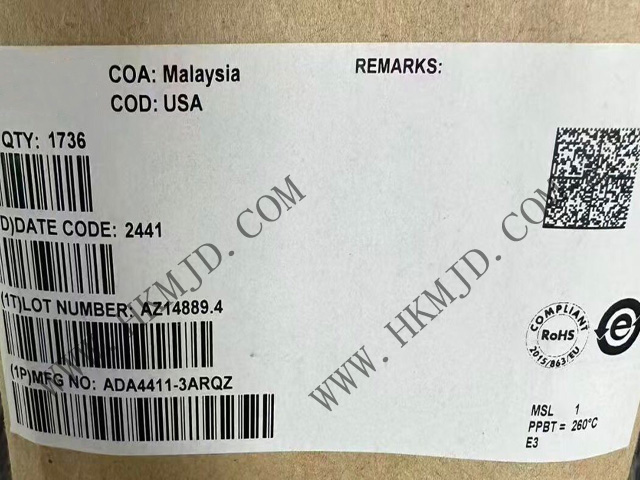

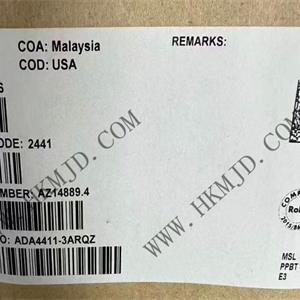

Stock: 1736pcs
The ADA4411-3ARQZ is a comprehensive, carefully designed filter solution that enables designers to implement filtering flexibly and easily, and drive various video signals, including high-definition video. The cutoff frequency range of the sixth-order video filter is 9 MHz to 36 MHz. These filters can be adjusted for RGB, high-definition, and standard-definition video signals.
The ADA4411-3ARQZ offers gain and offset voltage adjustment capabilities. Using a logic pin, the filter throughput gain can be selected as either x2 or x4. Applying a differential voltage to the independent offset control input allows for continuous adjustment of the output offset voltage within a range of ±500 mV relative to the input.
All video inputs of the ADA4411-3ARQZ feature a 2:1 multiplexer, which is useful in applications requiring filtering of multiple video signal sources.
The device can be powered by a +5 V single supply or ±5 V dual supply. The single-supply operating mode is ideal for applications requiring low power consumption. Additionally, it features a disable function that significantly reduces power supply current when the device is not in use, further lowering power consumption.
The output buffer can drive two DC-coupled or AC-coupled 75 Ω terminated loads.
The ADA4411-3ARQZ is available in a 24-pin, wide-body QSOP package and is rated for operation over the industrial temperature range of -40°C to +85°C.
Applications for the ADA4411-3ARQZ
Set-top boxes
Personal video recorders
DVD players and recorders
High-definition televisions
Projectors
ADA4411-3ARQZ Features
Sixth-order adjustable video filter: 36 MHz, 18 MHz, and 9 MHz
Supports multiple video standards: GBR, YPbPr, YUV, SD Y/C
Resolution up to 1080i/720p
All input ports feature 2:1 multiplexers
Variable gain: x2 or x4
DC output offset adjustment: ±0.5 V (relative to input)
Excellent video performance
Wide power supply voltage range: +4.5 V to ±5 V
Rail-to-rail output
Disable feature
