Service Telephone:86-755-83294757
Trade Name:TigerSHARC Embedded Processor
Brand:ADI
Particular Year:25+
Package:BGA-625
Delivery Date:New and original
Stock: 2000pcs
The ADSP-TS101SAB1Z100 TigerSHARC® processor is a high-performance, static Superscalar™ processor optimized for large-scale signal processing tasks and communication infrastructure. This DSP integrates a very wide memory width and a dual-channel computing module, supporting 32 and 40-bit floating-point processing as well as 8, 16, 32 and 64-bit fixed-point processing, setting a new performance standard for digital signal processors. The static superscalar architecture of the TigerSHARC processor enables the processor to execute up to four instructions per cycle, thereby performing 24 fixed-point (16-bit) operations or six floating-point operations.
The ADSP-TS101SAB1Z100 has the following main features:
300 MHz, 3.3 ns instruction cycle rate
6-bit internal on-chip SRAM memory

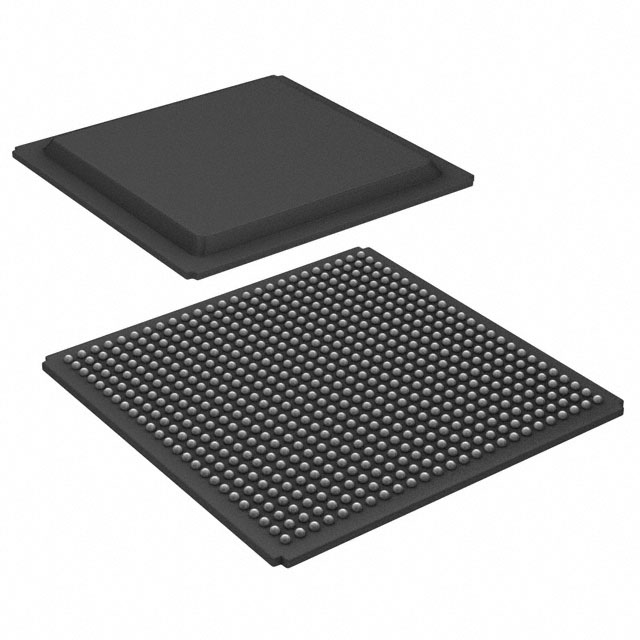

19 mm× 19 mm (484 pins) CSP_BGA or 27 mm× 27 mm (625 pins) PBGA package
Dual-channel computing module - each contains an ALU, multiplier, shifter and register file
Dual-channel integer ALU, providing data addressing and pointer operations
The integrated I/O includes a 14-channel DMA controller, external ports, 4 link ports, an SDRAM controller, programmable flag pins, 2 timers, and a timer expiration pin for system integration.
A JTAG test access port compliant with the 1149.1 IEEE standard for on-chip simulation
Supports seamless multi-processing on-chip arbitration, with up to 8 TigerSHARC processors on the bus
It provides high-performance static superscalar DSP operation and is optimized for telecommunications infrastructure and other demanding large-scale multi-processor DSP applications
Outstanding DSP algorithm and I/O benchmark performance (refer to the benchmarks in Tables 1 and 2 of the data sheet)
Supports low-overhead DMA transfer between internal memory, external memory, memory-mapped peripherals, link ports, other DSPS (multiprocessors), and host processors
Simplify DSP programming through a highly flexible instruction set and high-level language DSP architecture
Support scalable multiprocessing systems with low communication overhead
Application scenarios
The ADSP-TS101SAB1Z100 processor is suitable for 3G/4G base stations, radar signal processing, industrial instruments and meters, and other fields, featuring low latency and high concurrency processing.
Model
Brand
Package
Quantity
Describe
ADI
BGA-576
2000
500/600MHz TigerSHARC processor with 24Mbit on-chip embedded DRAM
