The TMS5700232BPZQQ1 device is a high-performance automotive-grade microcontroller for safety systems. This security architecture includes dual cpus in the lock step, built-in self-check (BIST) logic on the CPU and memory, ECC on the flash memory and data SRAM, parity check on the peripheral memory, and loop functions on the peripheral IO. The TMS5700232BPZQQ1 has the following key parameters:

Core processor: ARM® Cortex®-R4

Kernel specification: 16/32- bits

Speed: 80MHz

Connection capabilities: CANbus, LINbus, MibSPI, SCI, SPI, UART/USART

Peripheral devices: POR, PWM, WDT

I/O number: 45

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: 16K x 8

RAM size: 32K x 8

Voltage-supply (Vcc/Vdd) : 1.14V to 3.6V

Data converter: A/D 16x12b

Oscillator type: External

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

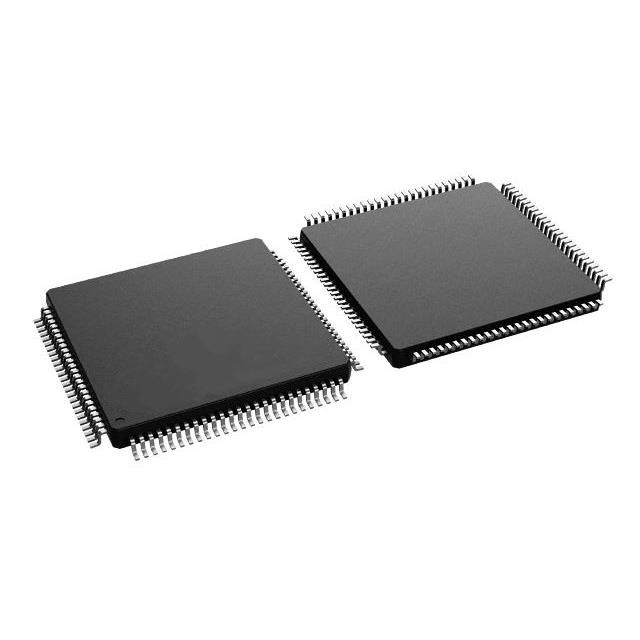

Supplier device packaging: 100-LQFP (14x14)

In addition, the TMS5700232BPZQQ1 microcontroller features peripherals for real-time control applications, including a new generation of high-end timer (N2HET) timing coprocessor with a total of up to 19 I/O pins and a 12-bit analog-to-digital converter (ADC) supporting 16 inputs. It adopts a 100-pin package.

Application field

The TMS5700232BPZQQ1 microcontroller is suitable for industrial applications that require high reliability and high performance, particularly in automotive electronics such as on-board control systems, sensor management, etc. ‌. Because it has passed automotive-grade certification, it is particularly suitable for use in automotive electronic products with high requirements for safety and stability.
