The F2800156EPHPRQ1 is a 32-bit automotive grade C2000™ real-time microcontroller designed specifically for automotive applications ‌. This microcontroller has the following technical parameters:

Core processor: TMS320C28x

Kernel specification: 32-bit dual-core

Speed: 100MHz

Connection capabilities: CANbus, I2C, SCI, SPI, UART/USART

Peripherals: Power failure detection/reset, I2S, POR, PWM, WDT

I/O number: 27

Program storage capacity: 256KB (128K x 16)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 18K x 16

Voltage - Power Supply (Vcc/Vdd) : 2.8V - 3.63V

Data converter: A/D 18x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 150°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

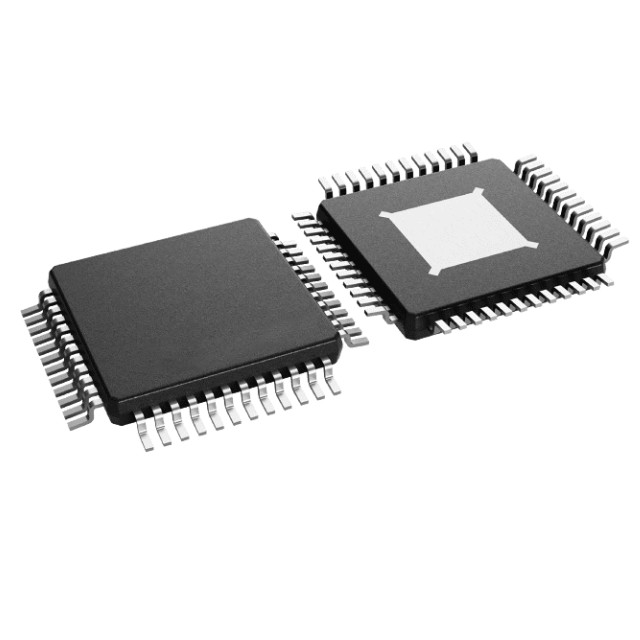

Supplier device packaging: 48-HTQFP (7x7)

In addition, the F2800156EPHPRQ1 microcontroller supports various industry-standard communication ports (such as PMBUS, SPI, SCI, LIN, I2C, CAN and CAN FD). It not only supports connection but also provides multiple pin multiplexing options, enabling excellent signal layout. F2800156EPHPRQ1 is mainly targeted at the automotive field. These applications include:

HVAC compressor module

Headlight

Dc/DC converter

Inverter and motor control

On-board charger (OBC) and wireless charger

pump

Industrial motor drive

Motor control

Digital power supply

Sensing and signal conditioning
