The F28P559SJ9PZRQ1 is an automotive-grade 32-bit microcontroller featuring 150MHz, 1.1MB flash memory, C28x + CLA, 5 ADCs, CLB, AES and NPU, belonging to the C2000™ real-time microcontroller series. This controller is designed to enhance the efficiency of power electronic devices, especially suitable for applications with high power density and high switching frequency, and supports GaN and SiC technologies. The main features and specifications of F28P559SJ9PZRQ1 include:

Core processor: C28x

Kernel specification: 32- bits

Speed: 150MHz

Connection capabilities: CANbus, I2C, SCI, SPI, UART/USART, USB

Peripherals: AES, Power Failure detection/reset, DMA, POR, PWM, WDT

I/O number: 43

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 133K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.8V - 3.63V

Data converter: A/D 35x12b SAR D/A 1x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

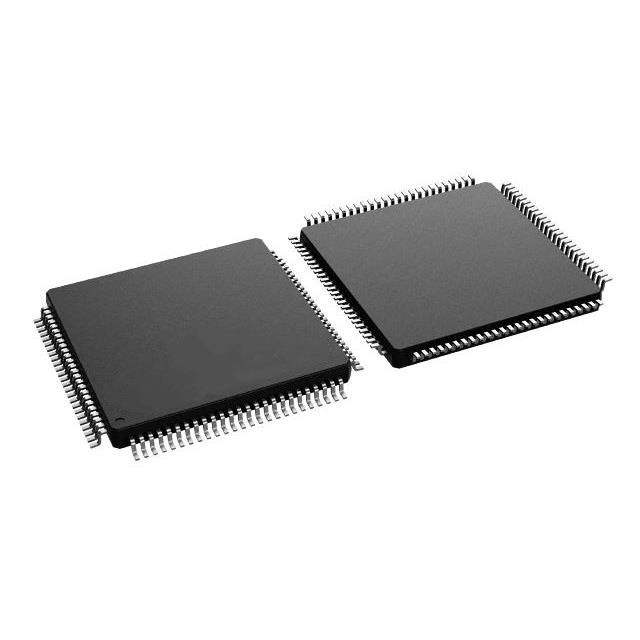

Supplier device packaging: 100-LQFP (14x14)

Application field

The F28P559SJ9PZRQ1 is widely used in various power electronics and control systems, including:

Motor driver

Electrical appliances

Hybrid, electric and powertrain systems

Solar energy and electric vehicle charging

Digital power supply

Vehicle body electronic devices and lighting

Testing and Measurement
