The F28P559SJ9PNARQ1 is an automotive C2000™ real-time microcontroller designed to improve the efficiency of power electronics. It is especially suitable for high power density, high switching frequency applications, and supports GaN and SiC technologies. The F28P559SJ9PNARQ1 is based on a 32-bit C28x DSP core and offers signal processing performance at 150MHz. The Floating-point Unit (FPU), Trigonometric Mathematical Unit (TMU), and VCRC (Cyclic Redundancy Check) extended instruction sets further enhance the processing capability.

In addition, the F28P559SJ9PNARQ1 features 1088KB of flash memory and 133KB of on-chip SRAM. The flash memory is divided into four 256KB storage bodies and one 64KB storage body, supporting programming of one storage body and parallel execution in another storage body.

Technical Specification

Core processor: C28x

Kernel specification: 32- bits

Speed: 150MHz

Connection capabilities: CANbus, I2C, SCI, SPI, UART/USART, USB

Peripherals: AES, Power Failure detection/reset, DMA, POR, PWM, WDT

I/O number: 32

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 133K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.8V - 3.63V

Data converter: A/D 28x12b SAR D/A 1x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

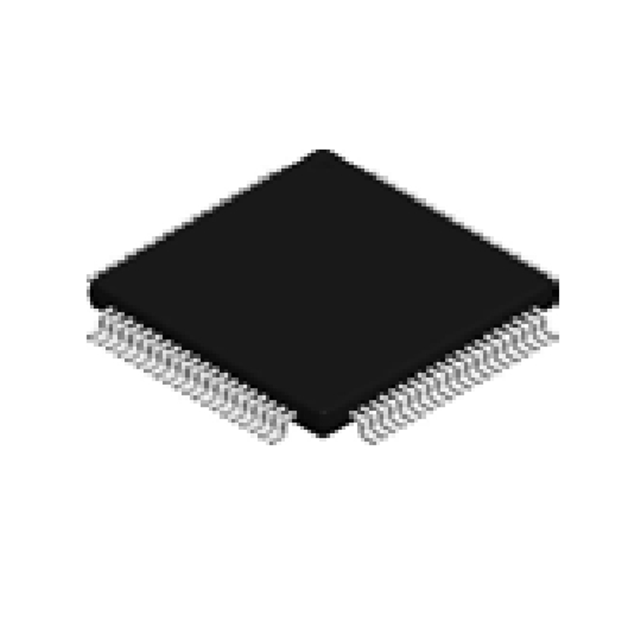

Supplier device packaging: 80-TQFP (10x10)
